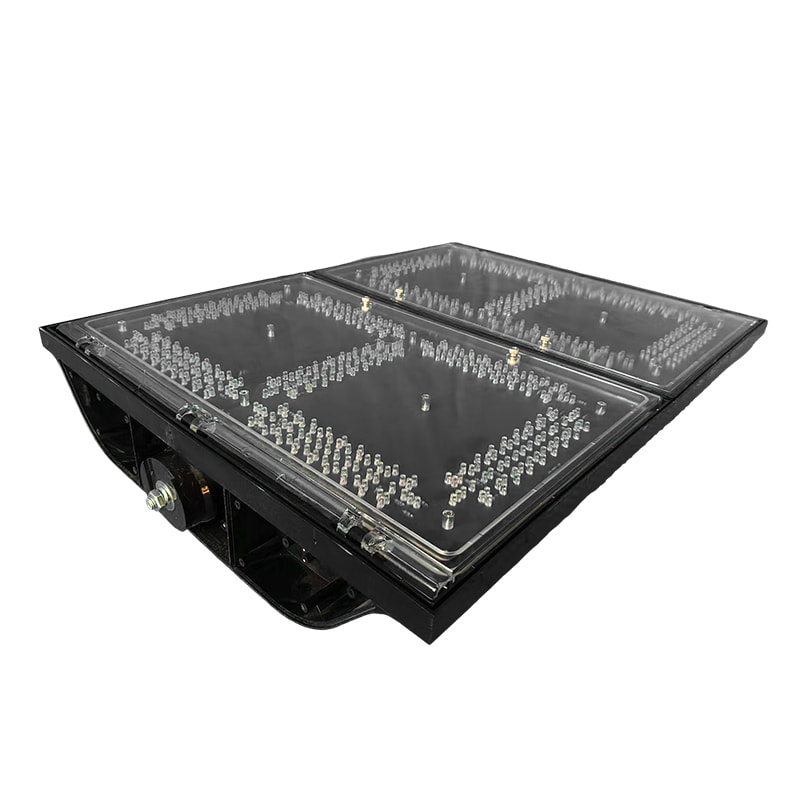

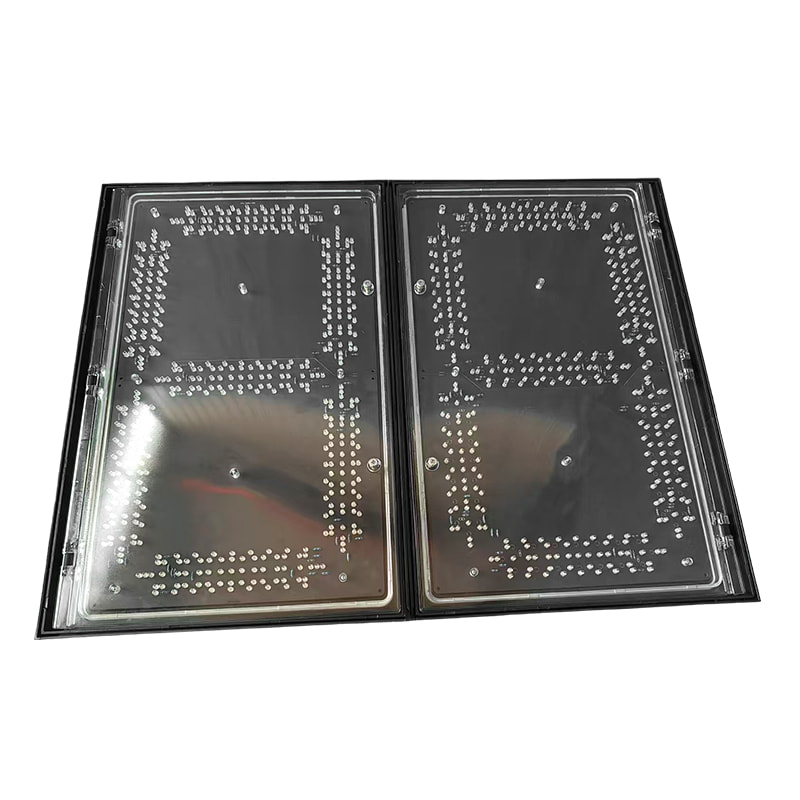

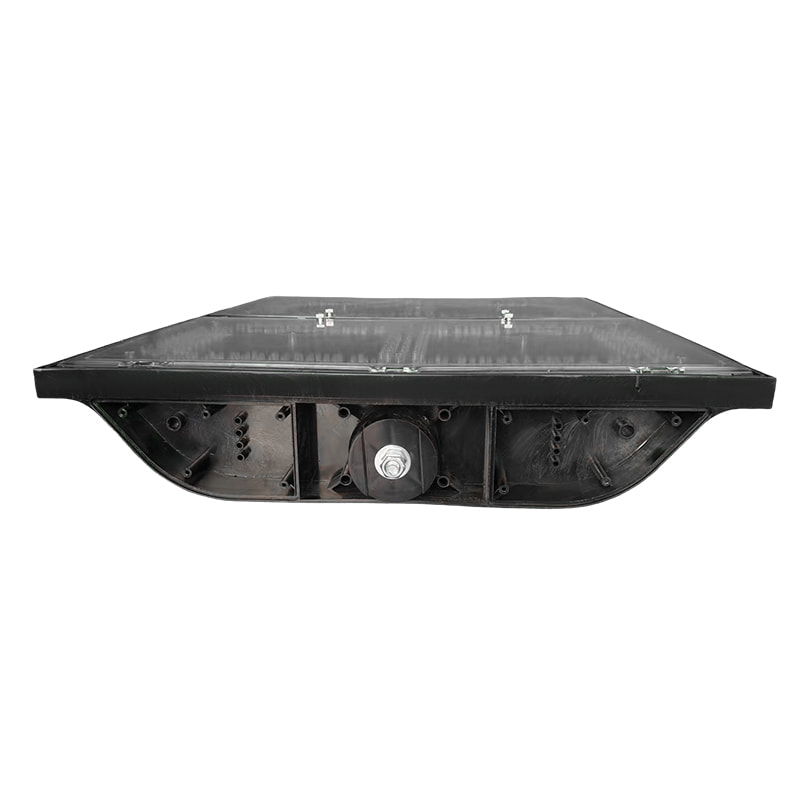

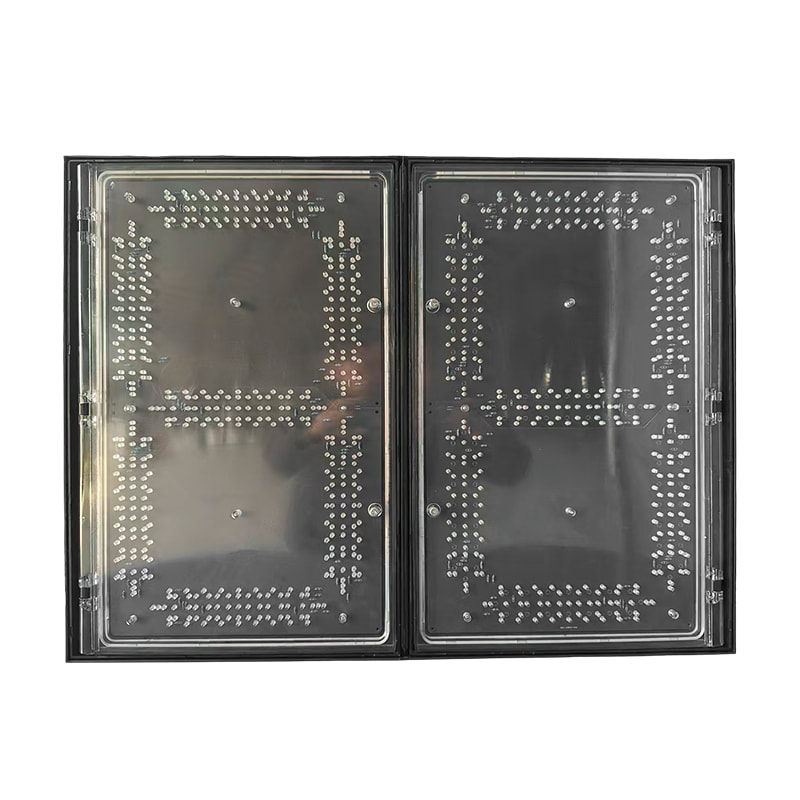

CJ-6080DJS-PCS 600×800mm LED Countdown Traffic Signal Light (Plastic Housing, PC Transparent Lens, IP53)

• Extra-Large High-Visibility Display
Featuring a 600×800mm luminous panel with an integrated countdown timer, this display allows drivers and pedestrians to clearly identify signal status and remaining transit time from a distance. The high-contrast interface ensures rapid judgment even in rain, fog, or intense glare, significantly improving intersection safety.

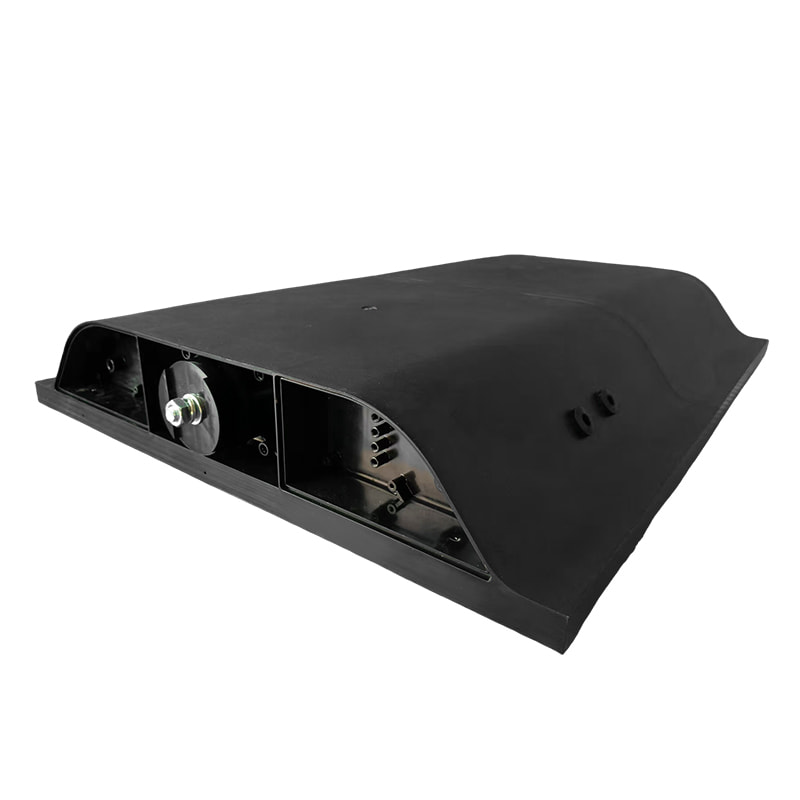

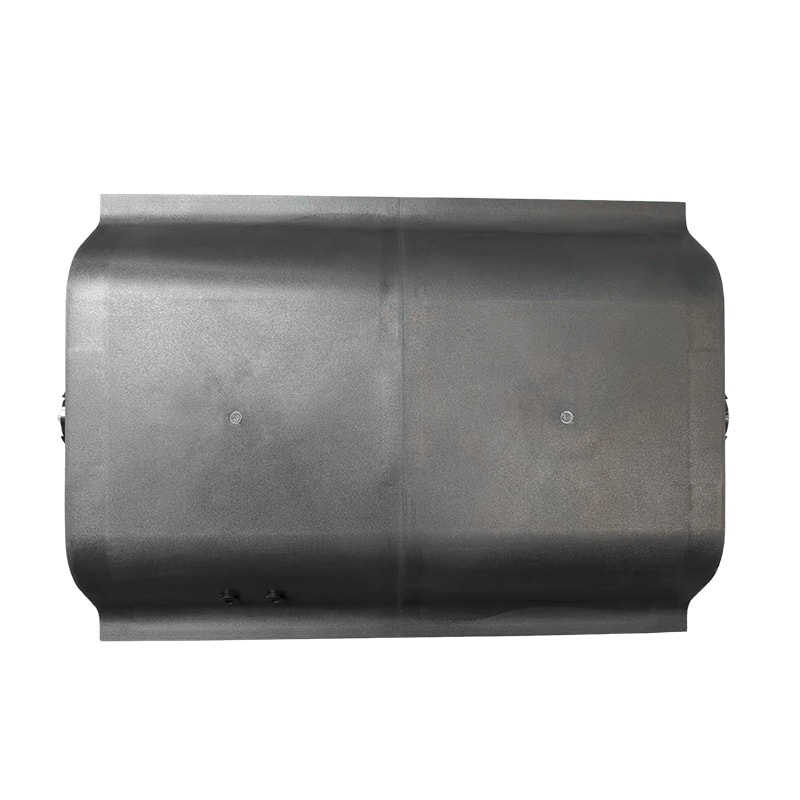

• Lightweight Weather-Resistant Plastic Housing
The chassis is constructed from high-strength plastic, offering a lightweight profile combined with excellent corrosion resistance and structural stability. This design facilitates easy installation and long-term outdoor use while reducing logistics and maintenance overhead.

• High-Transparency Polycarbonate (PC) Lens
The lens is crafted from premium Polycarbonate (PC), providing high light transmittance and superior impact resistance. It is engineered to resist UV aging, ensuring uniform light distribution from the LEDs while shielding internal electronic components from the elements.

• Wide Voltage Adaptability
Supporting a broad input range of 85~264VAC, the unit operates stably across various regional power grids and remains resilient against voltage fluctuations. This guarantees the continuous and reliable performance of the traffic signal in diverse electrical environments.

• Low-Power Energy-Saving Design
With a rated power consumption of ≤10W, the system utilizes high-efficiency LED light sources that generate minimal heat. This energy-efficient design extends the operational lifespan of the unit while reducing power consumption and the frequency of routine maintenance.

• Reliable Protection Rating
Certified to the IP53 protection standard, the enclosure effectively prevents dust accumulation and protects against rainwater spray. This ensures stable, long-term operation of the signal light in challenging outdoor municipal environments.

Compact & Lightweight Configuration

Dimensions: 840×595×110mm

Net Weight: Approximately 8.5KG

Packaging Size: 885×655×180mm
The compact structural layout is optimized for rapid deployment and simplified maintenance, making it an ideal solution for urban roadways and high-traffic intersections.

Installation & Compatibility
Lightweight Structural Design: This signal light measures 840 × 595 × 110mm with a 600 × 800mm luminous surface and a net weight of approximately 8.5kg. It features a high-strength plastic housing and a high-transmittance PC transparent lens, balancing durability with a lightweight profile for rapid installation. It is recommended to use standard U-bolts or double-point brackets for pole mounting to ensure stability and safety.

Large-Scale Countdown Display: The built-in high-brightness LED countdown module clearly displays remaining seconds, providing drivers with visual cues to anticipate transit or waiting times, thereby enhancing intersection safety and traffic efficiency.

Highly Compatible Control Interface: Adapted for common traffic controllers on the market, it supports synchronized control with red/green signals for standardized and intelligent countdown management.

Modular Maintenance Design: The housing, LED countdown module, and power driver can be disassembled independently. This facilitates routine inspection and component replacement, reducing maintenance costs and shortening equipment downtime.

Applications
Urban Arterials & Busy Intersections: The countdown information allows drivers to judge travel or waiting times in advance, improving intersection efficiency and reducing congestion.

Community & School Perimeter Roads: The large, highly visible countdown helps remind drivers to decelerate, enhancing safety for pedestrians and children.

Commercial Districts & Pedestrian Zones: In areas with high vehicle and pedestrian traffic, the clear countdown display reduces traffic conflicts and waiting anxiety.

Highway Entrances & Ramps: The large 600 × 800mm screen is clearly visible from a distance, effectively assisting vehicles in managing their driving rhythm and increasing transit safety.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
