CJ-203JT-S 200mm LED Arrow Traffic Signal Light - Red, Yellow & Green Arrows (PC Housing)

• Three-Color Directional Guidance: Integrated red, yellow, and green arrows allow for time-phased control of vehicle turns or stops, reducing intersection conflicts.

• Weather-Resistant Housing: Features a PC lens paired with a high-strength plastic shell, offering excellent UV resistance to prevent fading during long-term use.

• Wide Operating Voltage Range: Supports 85~264VAC input with stable performance, unaffected by local power grid voltage fluctuations.

• Energy-Efficient Lighting: Operating power for a single color is ≤8W; low LED heat generation extends the service life of the hardware.

• Dustproof and Waterproof Design: Features an IP53 protection level, meeting the requirements for reliable operation in daily outdoor environments.

Installation & Compatibility

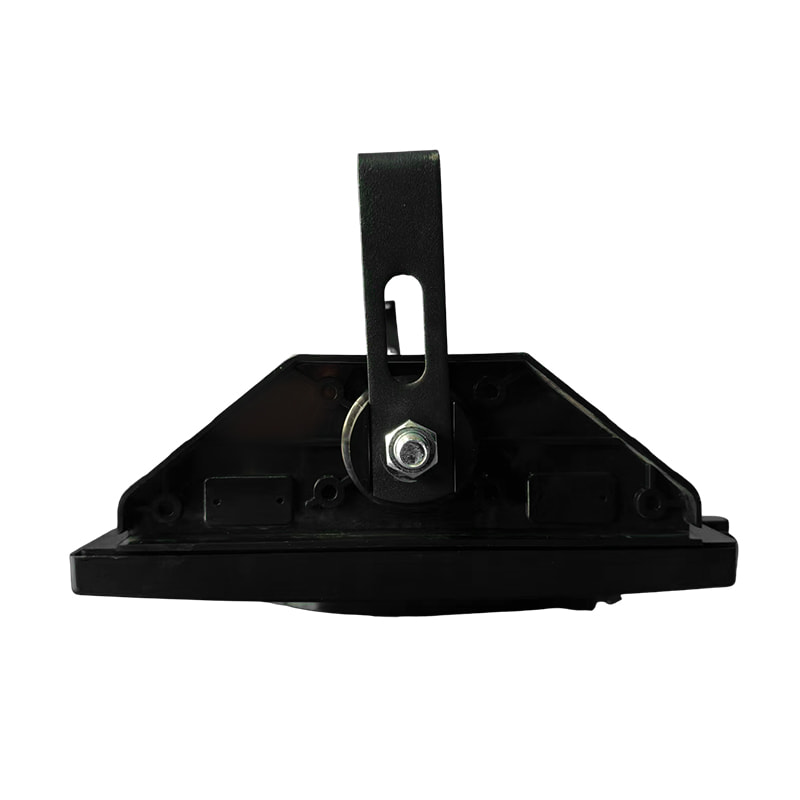

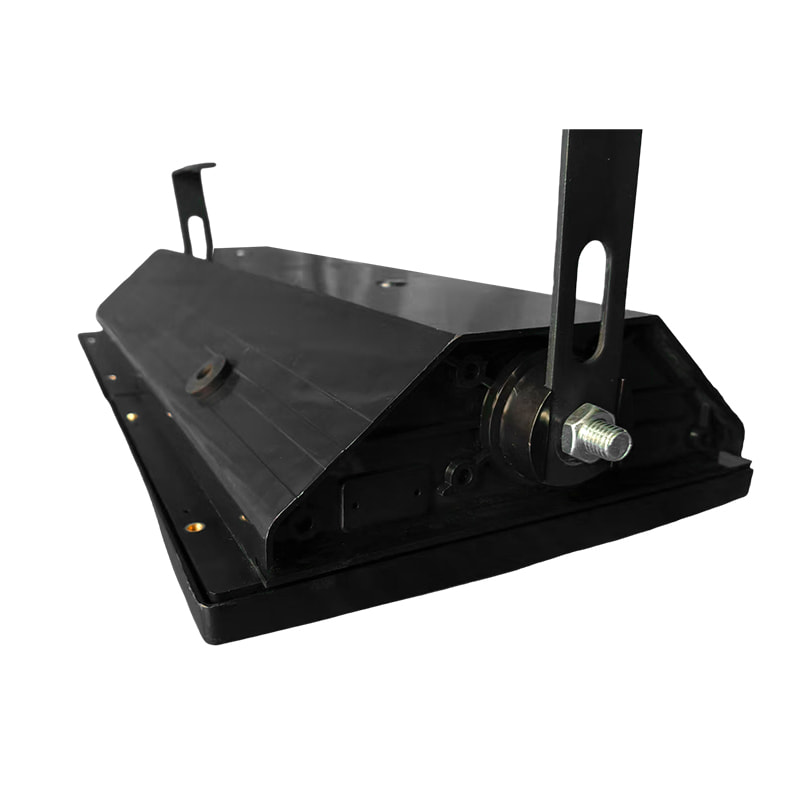

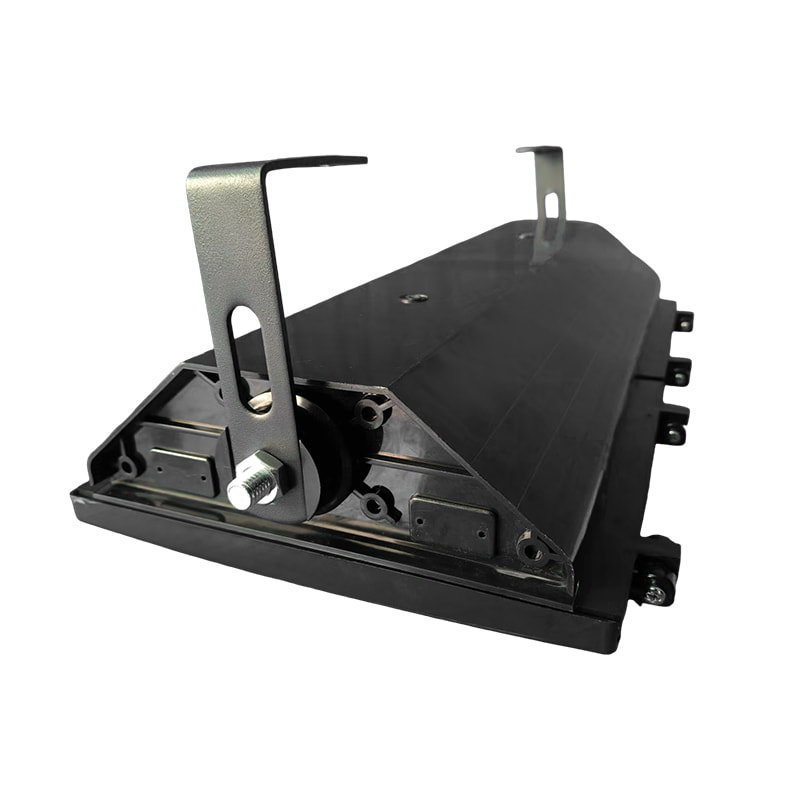

Multi-point Fixing Structure: Given the product's length (approximately 796mm), the back is equipped with multiple reinforced mounting points. It is recommended to use U-shaped bolts or professional backplates for fixation to horizontal arm poles to ensure stability in high-wind environments.
Standard Timing Linkage: Compatible with traffic controllers featuring multi-phase control functions, allowing for precise execution of complex traffic logic such as protected left turns, no-thru traffic, or U-turns.
Modular Maintenance: The red, yellow, and green units can be opened independently. The drive power supply for a specific color can be inspected without disassembling the entire lamp, shortening on-site repair time.
Lightning & Electrical Protection: Features built-in basic surge protection; it is recommended to use in conjunction with the surge protector in the traffic control cabinet to handle complex outdoor electrical environments.

Applications
Dedicated Turning Lanes: Installed on urban arterial left-turn or right-turn lanes to effectively alleviate conflicts between straight-moving and turning vehicles through arrow signals.
Highway Toll Stations: Deployed above toll booth entrances to indicate whether a lane is open (Green Arrow for entry / Red Cross for stop) or to guide vehicles into specific manual or ETC lanes.
Weigh Stations & Security Checkpoints: Used at logistics ports or freight inspection stations to guide trucks into inspection areas according to instructions, improving customs clearance efficiency.
Smart Multi-level Parking Garages: Indicates the forward direction of vehicles at lifting platforms or diversion points in multi-story garages to avoid collision risks.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
