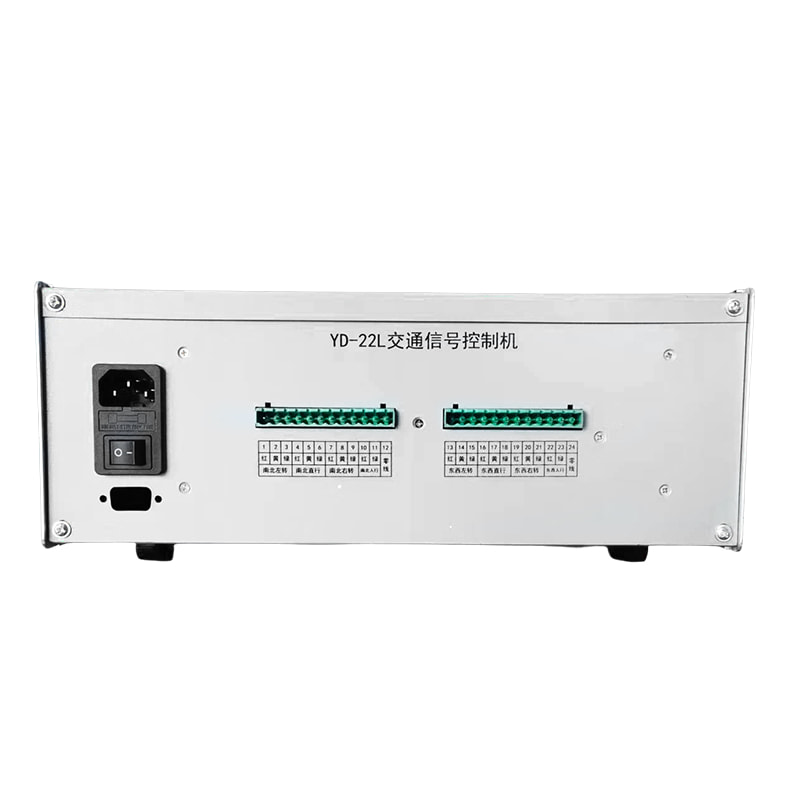

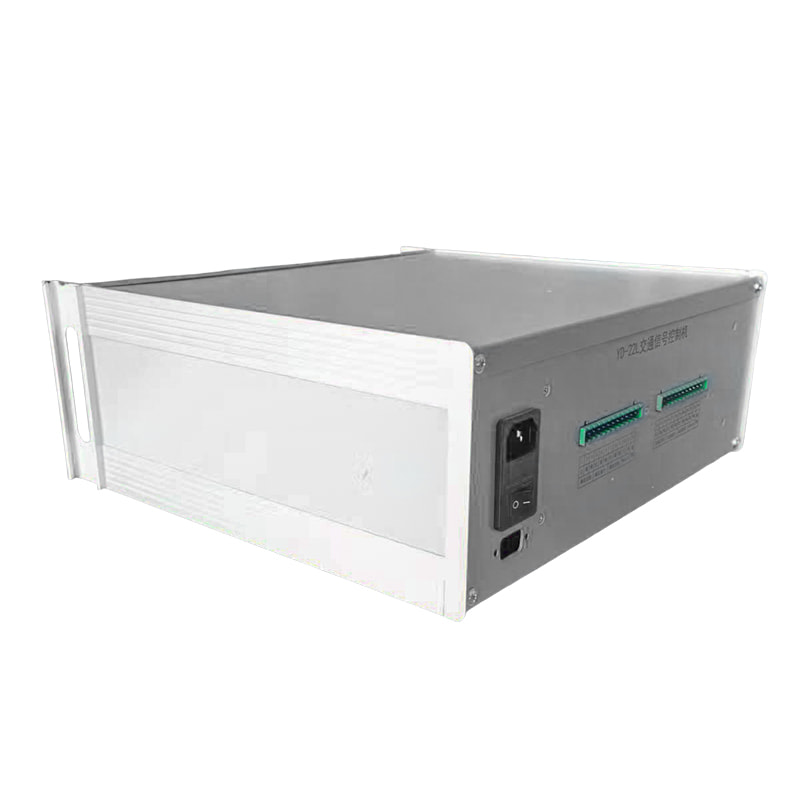

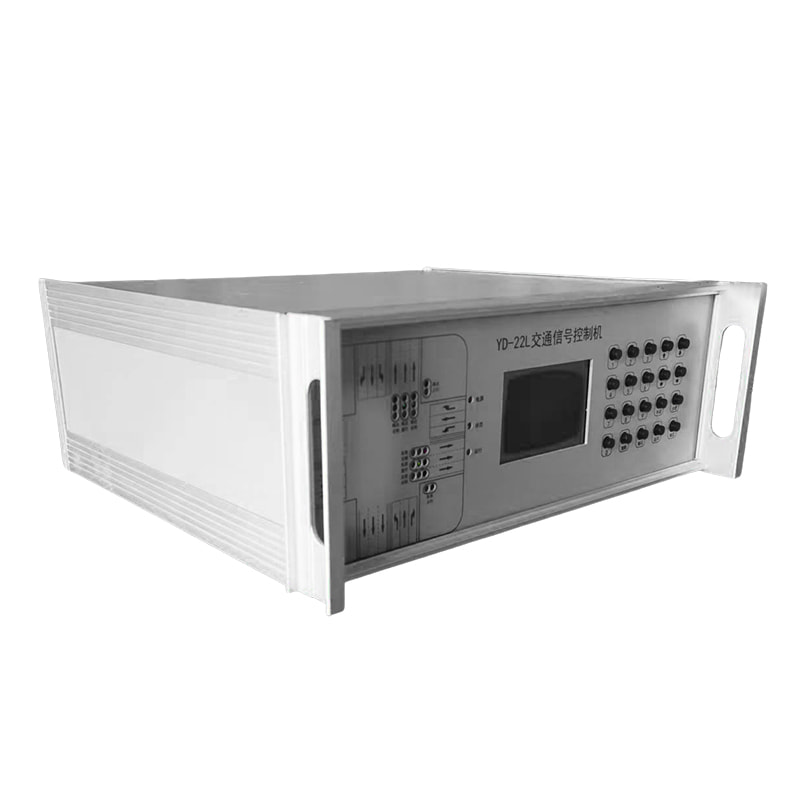

CJ-22LXHJD-0 22-Channel Standalone Traffic Signal Controller

• Multi-Channel Control Architecture
Featuring 22 independent output channels, this controller can simultaneously manage multiple traffic signal groups. This allows for the centralized control and intelligent scheduling of a single-point intersection, significantly enhancing road management efficiency and traffic flow optimization.

• Wide Voltage & Power Stability
Supports a standard 220V AC (±10V, 50Hz) power input. This wide voltage range is engineered to accommodate typical municipal grid fluctuations, ensuring the controller remains operational and stable under varying power conditions.

• Weather-Resistant Sheet Metal Housing
The enclosure is constructed from high-strength sheet metal, providing a robust structure that resists corrosion and deformation. With an IP65 protection rating, the unit is fully sealed against dust and water ingress, making it ideal for long-term deployment in harsh outdoor environments or within external control cabinets.

• Extreme Environmental Adaptability
Engineered to perform reliably across a rigorous temperature spectrum from -40°C to +80°C. This high thermal tolerance ensures the unit meets traffic management requirements in diverse climates, from arctic cold to intense tropical heat.

• Compact & Streamlined Installation
With product dimensions of 120×320×300mm and a net weight of approximately 2.7kg, the compact form factor allows for effortless integration into standard traffic control cabinets. The lightweight design simplifies the installation process and facilitates rapid on-site maintenance.

• Versatile Application Scenarios
Specifically designed as a reliable single-point signal control solution, this unit is perfectly suited for urban intersections, industrial park entrances, or temporary traffic management checkpoints.

Installation & Compatibility
Industrial-Grade Power Design: Operates on standard AC 220V ±10V, 50Hz alternating current, ensuring seamless compatibility with the vast majority of traffic control systems.

Extreme Environment Resistance: Engineered to operate within a wide temperature range of -40°C to +80°C, providing stable and reliable performance under high heat, extreme cold, and harsh outdoor conditions.

Robust Housing: The body is constructed from high-strength sheet metal with an IP65 protection rating, offering superior dustproof and waterproof capabilities to protect the internal components of the controller.

Compact Layout: With dimensions of 120 × 320 × 300mm, the unit is designed for a compact footprint, allowing it to be easily integrated into standard traffic control cabinets for simplified wiring and maintenance.

Effortless Installation: Specifically designed for fixed installation within cabinets, it enables rapid connection to existing traffic infrastructures, significantly reducing onsite wiring and installation time.

Applications
Urban Intersections: Supports up to 22 independent signal control channels, making it ideal for managing complex light-controlled traffic at busy intersections.

Traffic Control Centers: Serves as the core signal control unit for centralized management or remote monitoring and command systems.

Industrial Parks & Logistics Hubs: Manages internal vehicle flow to achieve precise scheduling and enhanced safety oversight within facility grounds.

Road Construction & Temporary Signaling: Can be flexibly integrated into mobile cabinets for the rapid deployment of temporary traffic signal controls.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized based on project requirements.

For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
