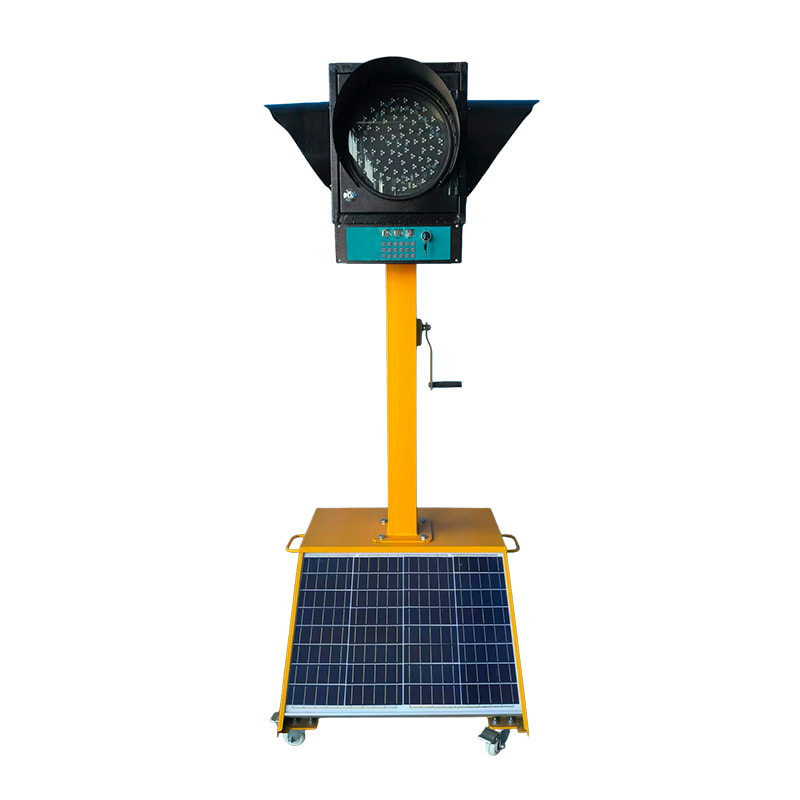

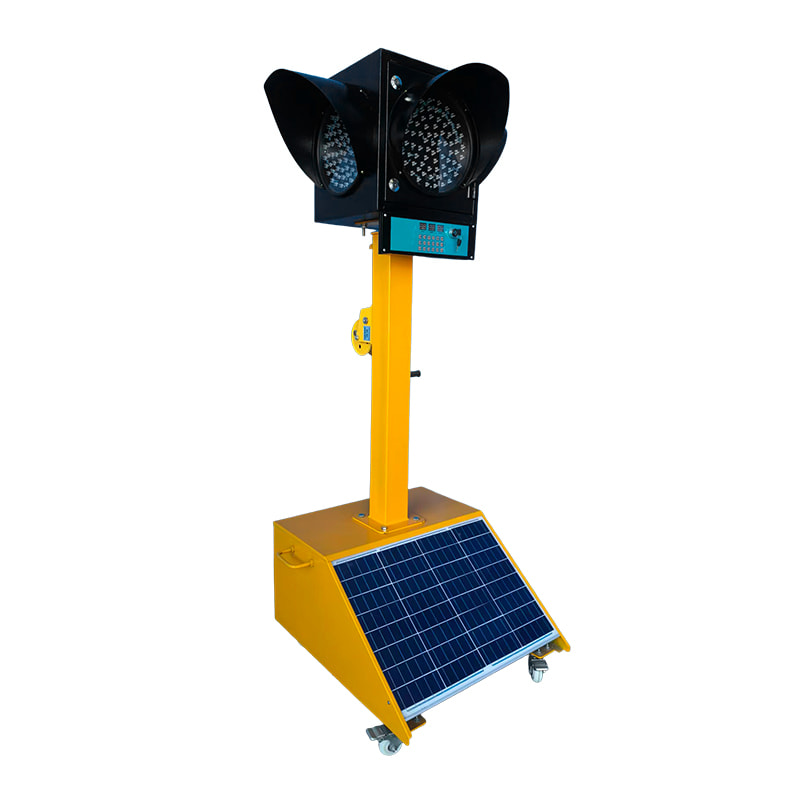

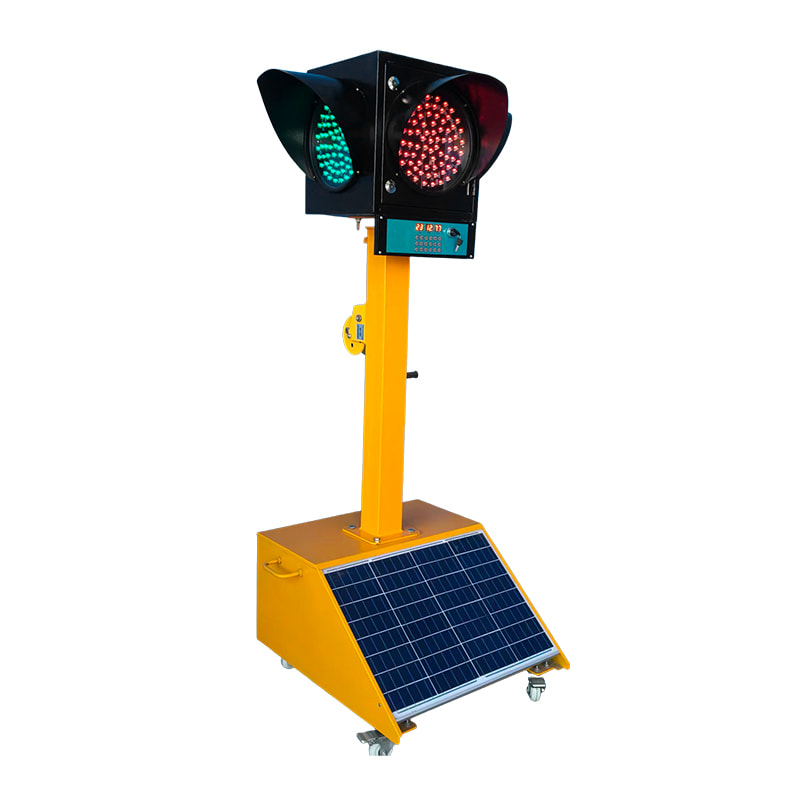

CJ-301YDD-MP 300mm LED Mobile Signal-Head Traffic Signal Light

• High-Intensity Full-Screen LED Display
Featuring a Φ300mm full-screen LED source, the red and green signals offer exceptional clarity and long-distance visibility. This ensures high-performance safety signaling across all weather conditions and complex visual environments.

• Mobile Power & Low-Power Architecture
Operates on a 12V DC power supply with a total power consumption of ≤12W. This low-energy design ensures stable, long-term operation while minimizing thermal accumulation to extend the LED lifespan and conserve energy.

• Rugged & Durable Enclosure
The chassis is constructed from high-quality sheet metal with an IP55 protection rating. This provides an effective seal against dust and rain, making the unit highly adaptable to urban roadways, construction sites, and harsh outdoor conditions.

• Adjustable Height Design
The signal pole features a telescoping height range from 1800mm to 2565mm. This flexibility allows the unit to adapt to specific site requirements and installation needs, facilitating rapid and versatile deployment.

• Compact & Portable Form Factor

Expanded Dimensions: 680×770×1800mm

Net Weight: ~84kg

Total Package Weight: ~88kg
The structural design balances stability with portability, allowing for efficient transport and on-site positioning.

• Streamlined Installation
Designed for immediate use without complex wiring. The "plug-and-play" nature of the unit allows for rapid unfolding and activation, making it ideal for temporary construction zones, parking management, and emergency traffic control.

• Versatile Application Scenarios
Perfectly suited for urban roads, construction sites, temporary parking lots, and emergency traffic management. This unit provides a secure, reliable, and mobile solution for dynamic traffic guidance and control.

Installation & Compatibility
Portable & Folding Design: The entire unit can be rapidly folded and unfolded, allowing for single-person operation and transportation. It is specifically designed for temporary or mobile traffic management.

Robust & Durable Housing: Constructed with a high-strength sheet metal shell and an IP55 protection rating, the unit effectively resists dust and rain. It is engineered to operate reliably in harsh environments ranging from -40°C to +80°C.

Low-Power LED Signal: With a power consumption of ≤ 12W, the unit features a 300mm full-ball high-brightness LED surface to ensure excellent visibility during both day and night.

Adjustable Height: The overall height of the signal light is adjustable from 1800mm to 2565mm, allowing it to meet various road conditions and sightline requirements.

Voltage Adaptability: Supports a DC 12V power supply, making it highly compatible with solar panels, storage batteries, or vehicle power outlets for flexible deployment.

Applications
Urban Temporary Construction Zones: Can be deployed instantly without the need for trenching or wiring, facilitating efficient traffic guidance at work sites.

Parking Lots & Residential Entrances: The mobile nature of the signal allows for flexible positioning to manage vehicle access and flow as needed.

Remote Roads or Rural Highways: Provides essential traffic control in areas without access to the municipal power grid, ensuring driving safety in underdeveloped regions.

Events & Emergency Traffic Control: Perfectly suited for large-scale public events, exhibitions, or emergency scenarios requiring rapid traffic diversion and management.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
