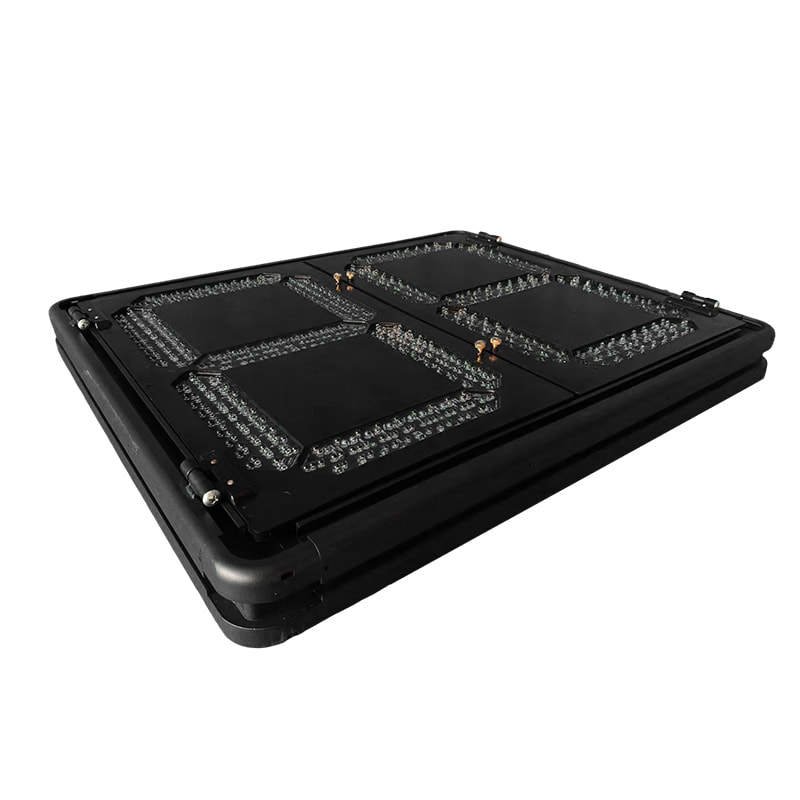

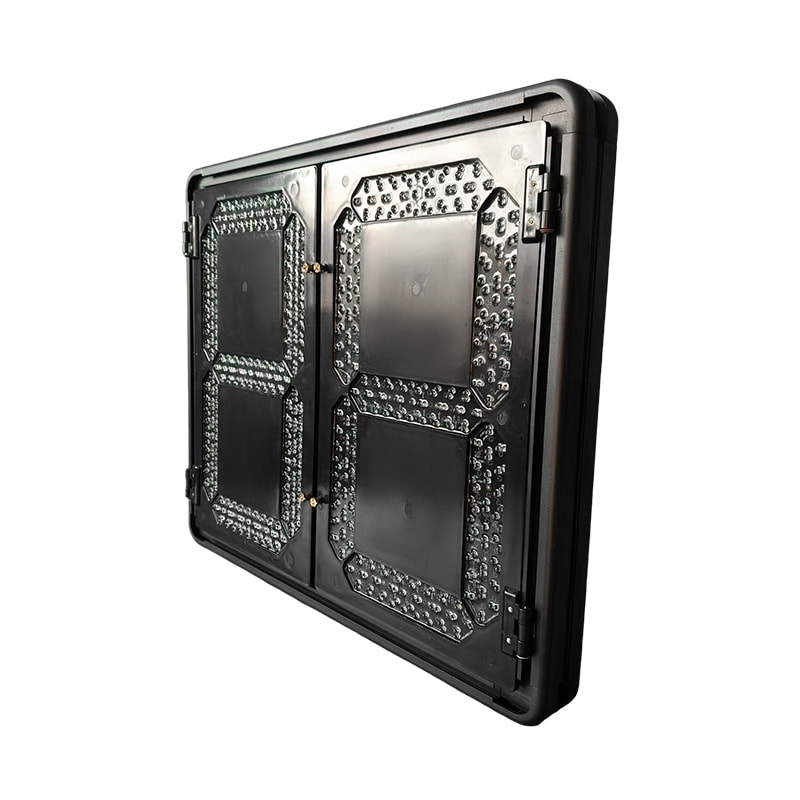

CJ-6080DJS-NBXC 600×800mm LED Countdown Traffic Signal Light (Extruded Aluminum Housing, PC Lens, IP53)

• Large-Format High-Visibility Display
Designed with a substantial 600×800mm luminous area and integrated LED countdown functionality. This configuration ensures long-distance visibility, allowing pedestrians and drivers to quickly and accurately identify remaining crossing time even in heavy rain, fog, or intense sunlight.

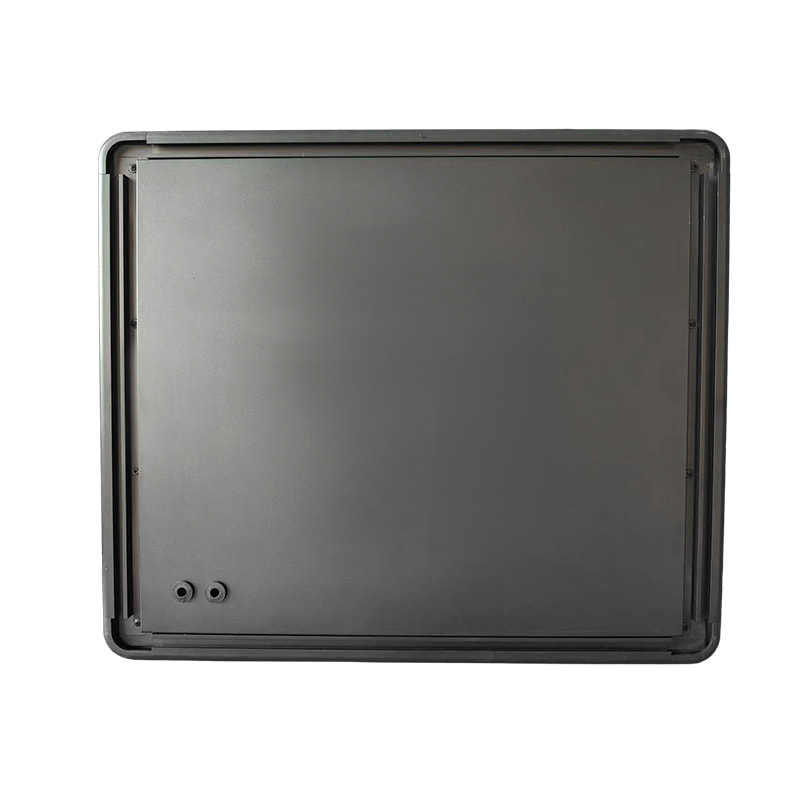

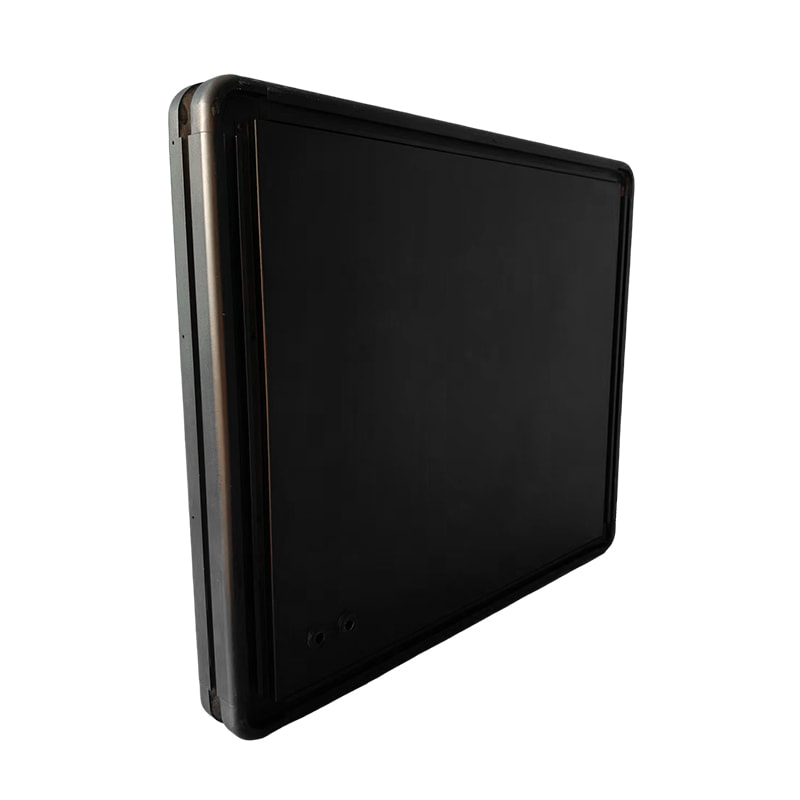

• High-Strength Extruded Aluminum Housing
The lamp body is constructed from high-quality extruded aluminum, offering an ideal balance of lightweight portability and structural rigidity. This material provides superior resistance to corrosion and impact, ensuring long-term stability in demanding outdoor environments.

• High-Transparency PC Lens
The lens is crafted from premium Polycarbonate (PC), which is highly resistant to impact and UV aging. It maintains high light transmittance while effectively shielding the internal LED light source, significantly extending the product's service life.

• Wide Voltage Adaptability
Engineered to support a broad input range of 85–264VAC, the unit operates stably across various power grid conditions, ensuring continuous and reliable signal performance without interruption.

• High-Efficiency Energy Saving
Featuring a rated power of ≤10W, the system utilizes high-efficiency LED technology. This low-heat operation reduces energy consumption while preventing thermal degradation, further prolonging the lifespan of the components.

• Reliable Environmental Protection
With an IP53 protection rating, the unit is effectively sealed against dust accumulation and rainwater splashes, guaranteeing reliable long-term performance in diverse outdoor traffic conditions.

• Compact & Lightweight Design
With product dimensions of 725×615×70mm and a net weight of approximately 8.5kg, the compact architecture facilitates cost-effective shipping and streamlines the installation and maintenance process.

Installation & Compatibility
Slim Extruded Aluminum Housing: This signal light measures 725 × 615 × 70mm with a 600 × 800mm luminous surface. Crafted from extruded aluminum combined with a high-transmittance PC lens, it achieves a lightweight profile without compromising structural strength, weighing approximately 8.5kg. It is suitable for quick and stable installation on traffic poles using standard U-bolts or double-point brackets.

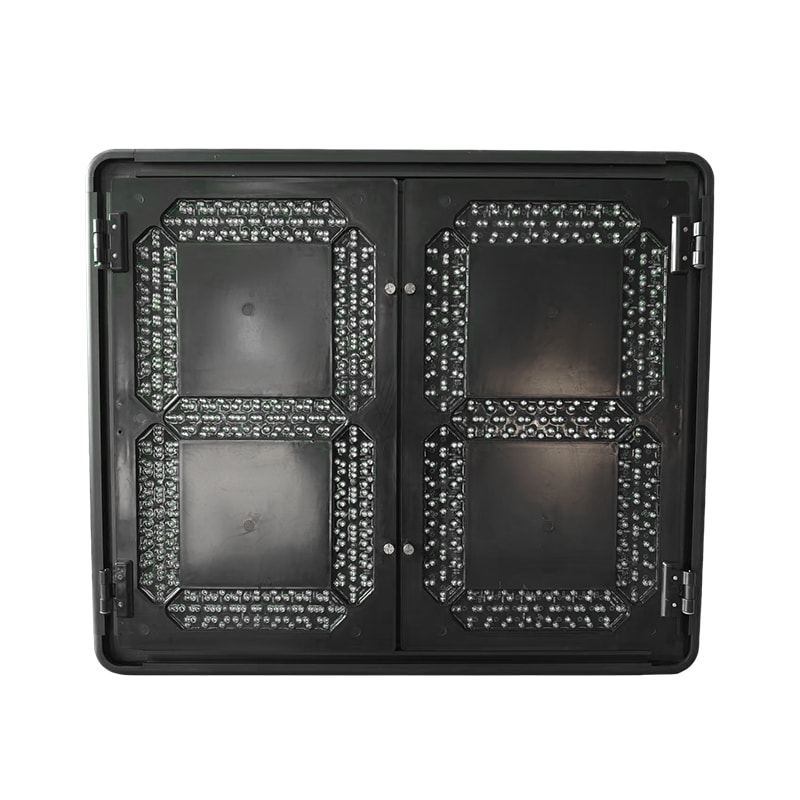

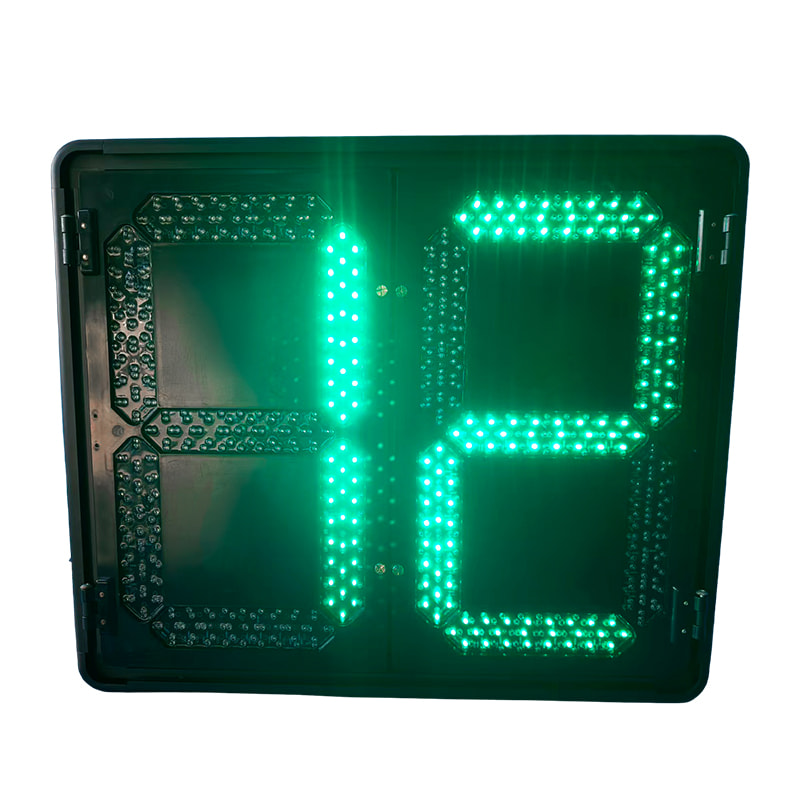

High-Visibility Countdown Display: The built-in LED countdown module provides clear timing information, assisting drivers and pedestrians in anticipating transit or waiting times to improve intersection efficiency and safety.

Broad Compatibility: The electrical interface is compatible with standard traffic controllers, supporting an input voltage range of 85~264VAC. This allows for synchronized control of red/green signals and countdowns, meeting the diverse requirements of urban roads and highway entrances.

Convenient Maintenance Design: The housing and LED countdown module can be disassembled independently. This allows for easy maintenance and replacement without removing the entire unit, reducing equipment downtime and maintenance costs.

Applications
Urban Arterials & Crossroads: The large-scale luminous surface and countdown display allow for clear identification of remaining transit time from a distance, enhancing intersection safety and traffic flow.

Highway Ramps & Converging Roads: The slim aluminum design is ideal for rapid installation on elevated structures or bridges, while the countdown information helps vehicles manage their driving rhythm in advance.

School, Hospital & Commercial Districts: Clear countdown prompts remind drivers to decelerate or stop, providing enhanced safety assurance for pedestrians and vulnerable groups.

Industrial Parks & Logistics Channels: Countdown information assists in managing the passage of heavy vehicles, optimizing traffic flow and reducing congestion or potential conflicts.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
