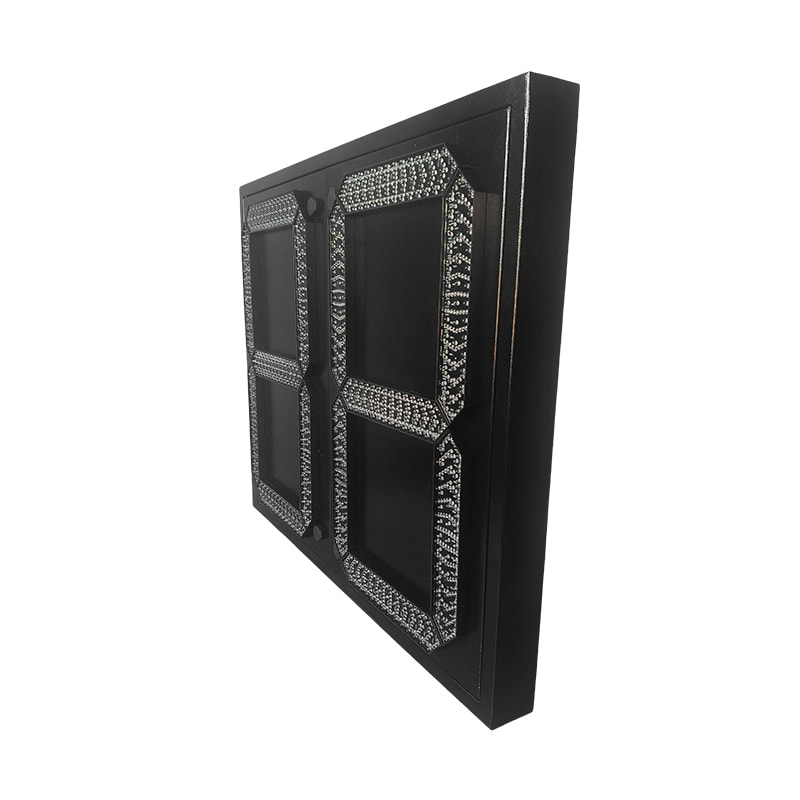

CJ-DJS-DZBJ 1000×900mm LEDCountdown Traffic Signal Light (Sheet Metal Housing, PC Lens, IP53)

• Extra-Large Display Panel
Featuring a 1000×900mm luminous area paired with an integrated LED countdown timer, this panel provides an exceptional viewing distance. It allows pedestrians and drivers to easily track remaining transit time in complex traffic environments, significantly enhancing intersection safety.

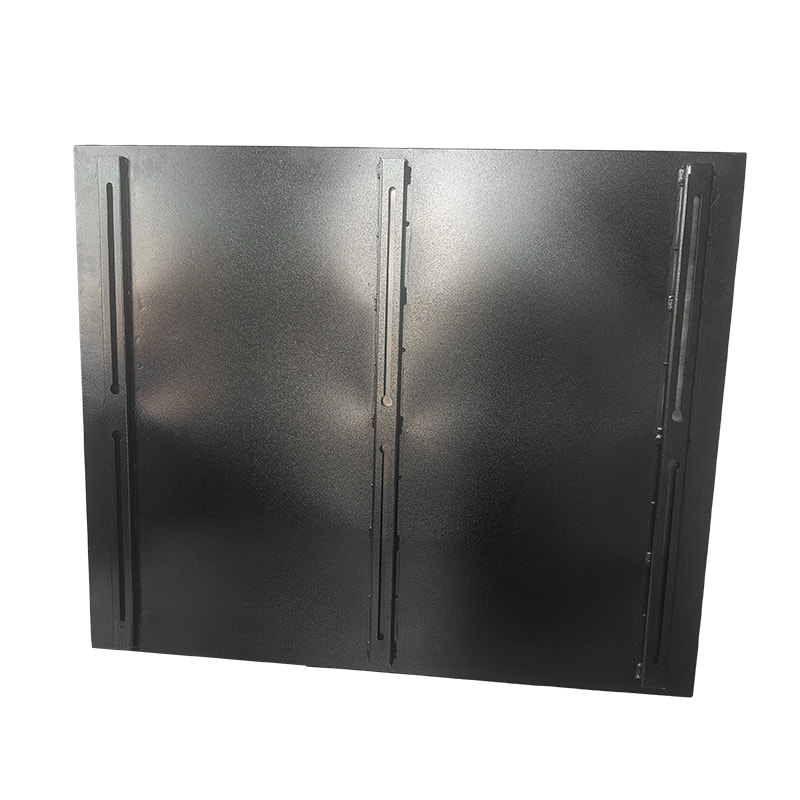

• High-Strength Sheet Metal Housing
The chassis is manufactured from ruggedized sheet metal, offering superior impact resistance and anti-corrosion properties. This stable structural design is specifically engineered for long-term durability in demanding outdoor conditions.

• Transparent Polycarbonate (PC) Lens
The lens is crafted from high-grade Polycarbonate (PC), which combines high light transmittance with extreme impact resistance. This protective layer shields the internal LED light source from environmental damage and UV degradation, ensuring long-term operational reliability.

• Wide Voltage Compatibility
Supports a broad input range of 85~264VAC, allowing the unit to adapt to various regional power standards and grid fluctuations. This ensures consistent signal performance across diverse electrical environments.

• Low Power Consumption & High Efficiency
With a rated power consumption of ≤10W, the unit utilizes high-efficiency LED light sources that generate minimal heat. This energy-saving design reduces operational costs while effectively extending the service life of the components.

• Robust Environmental Protection
With an IP53 protection rating, the enclosure is effectively sealed against dust accumulation and rainwater splashes, guaranteeing reliable long-term performance in outdoor municipal applications.

Streamlined Installation & Logistics

Dimensions: 1250×950×100mm

Net Weight: Approximately 36KG

Packaging Size: 1260×960×110mm
The rational structural layout facilitates efficient transport, rapid on-site installation, and simplified routine maintenance.

Installation & Compatibility
Robust Sheet Metal Housing: This signal light measures 1250 × 950 × 100mm with a 1000 × 900mm luminous surface. Constructed from high-strength sheet metal combined with a high-transmittance PC lens, it offers exceptional durability and protection. With a net weight of approximately 36kg, it is designed for long-term outdoor installation. It is recommended to use heavy-duty U-bolts or custom brackets for pole mounting to ensure safety and stability.

Customizable Countdown Display: Supports customizable LED countdown display modules, which can present remaining transit time by the second or in segments. This provides drivers with intuitive and easily identifiable information, improving intersection efficiency and safety.

High-Compatibility Control Interface: Supports integration with standard traffic controllers. The electrical interface adapts to an 85~264VAC input voltage, allowing for synchronized control of red/green signals and countdown modules to meet various road management needs.

Modular Maintenance Design: The housing, LED countdown modules, and power supply can be disassembled independently. This facilitates convenient maintenance and rapid replacement, reducing equipment downtime and operational costs.

Applications
Large Urban Intersections: The massive luminous surface combined with a custom countdown allows long-distance vehicles and pedestrians to clearly judge transit time, improving traffic order at the intersection.

Highway Entrances & Ramps: The 1000 × 900mm luminous surface is recognizable from a great distance, with countdown information helping vehicles safely gauge their driving rhythm.

Industrial Parks & Logistics Channels: Customized countdowns can be set to different display modes based on traffic volume, effectively managing the transit of large vehicles and reducing waiting times or conflicts.

Key Safety Zones: Ideal for areas such as schools, hospitals, and commercial districts, where the large-scale, intuitive countdown display provides enhanced safety assurance for vulnerable groups.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
