CJ-102HLR-S Pedestrian Traffic Signals

• 100mm signal diameter: Standard size for pedestrian signal heads, compatible with most mounting hardware

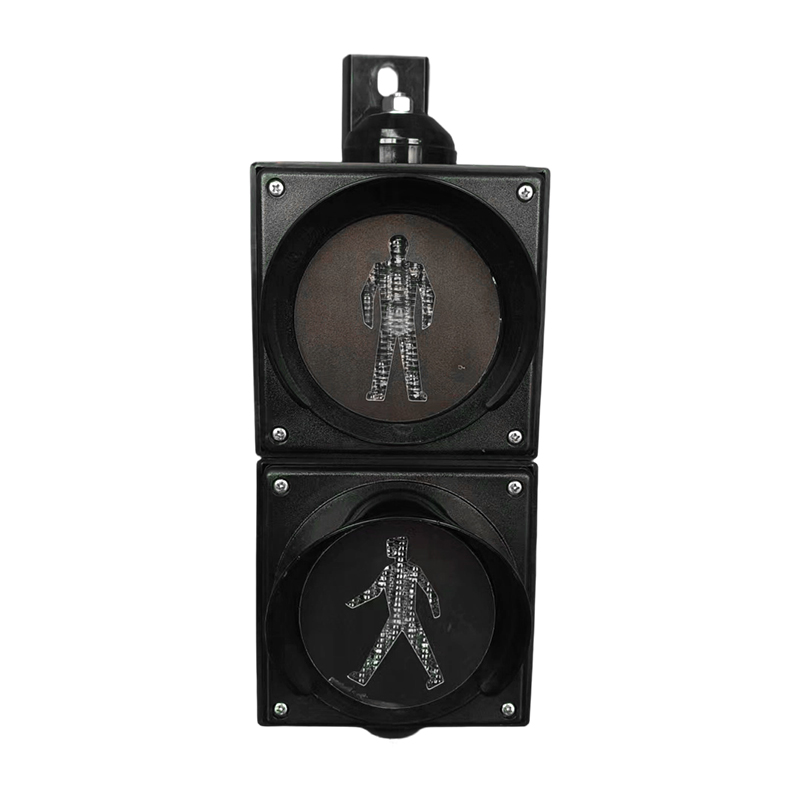

• Dual-aspect pedestrian display: Walk (green) and Don't Walk (red) iconography for clear pedestrian guidance
• Plastic housing with PC lens: Lightweight, impact-resistant, and UV-stable for prolonged outdoor exposure
• ≤8W rated power: Low operating cost over continuous 24/7 deployment
• 85~264VAC wide-voltage input: Plug-compatible with local power infrastructure worldwide
• IP53 rated: Protected against dust and water spray, suitable for exposed outdoor locations
• Compact and lightweight: Easy to ship, install, and maintain
• LED chips with stable performance and uniform brightness.
• Aesthetically pleasing design, energy-efficient, and environmentally friendly.
• Mask made of PC/Glass material, durable, with high light transmittance and UV protection.
• Imported chips used, offering high brightness, low light decay, long lifespan, and stable performance.

Installation & Compatibility
The CJ-102HLR-S is designed for standard traffic signal pole mounting. The 175mm housing depth is compatible with most back-plate and visor accessories used in roadway signal installations. The unit is controlled by external traffic signal controllers and is compatible with both fixed-time and actuated signal systems.

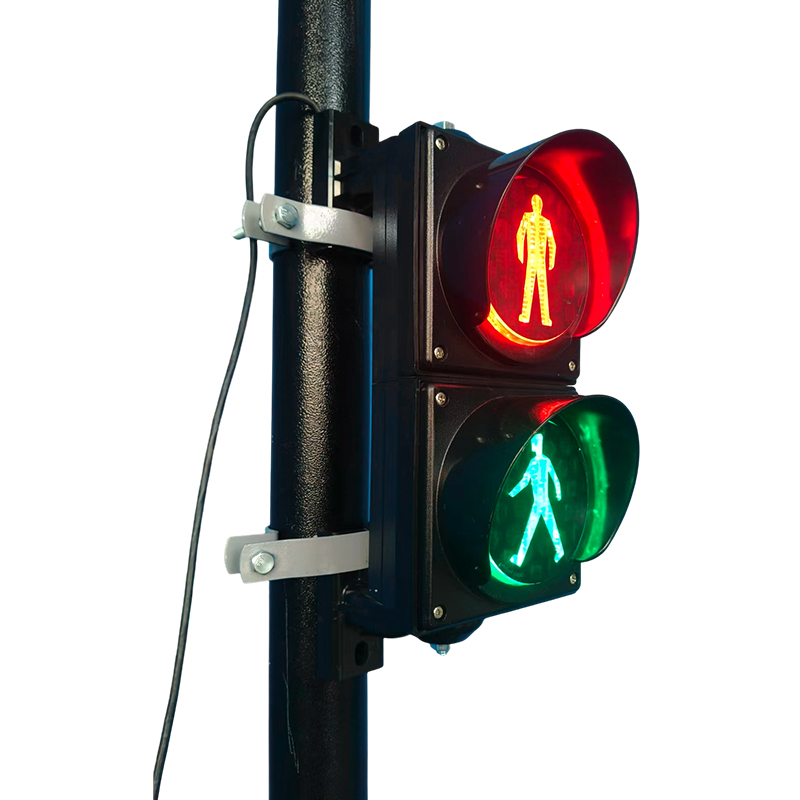

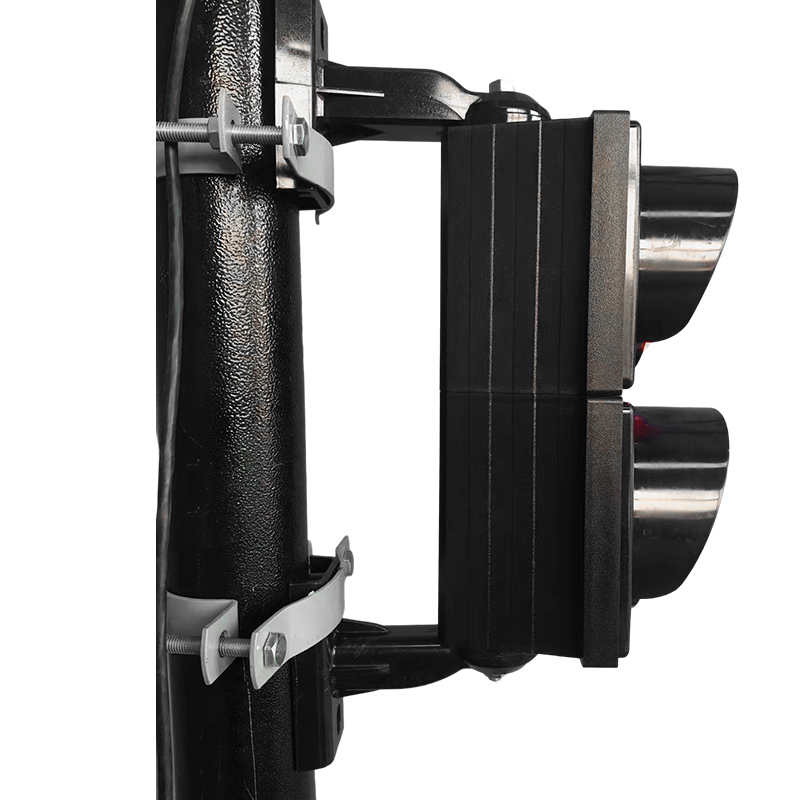

Typical mounting configurations include: cantilever arm, mast arm, side-of-pole bracket, and overhead span wire. The signal head does not include a countdown timer module; for applications requiring pedestrian countdown displays, please inquire about our integrated countdown signal products.

Suitable For
• Signalized pedestrian crossings on arterial and collector roads
• School zone crossing signals
• Crosswalks adjacent to signalized intersections
• Mid-block pedestrian signal installations
• Replacement / retrofit of existing incandescent pedestrian signal heads

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
