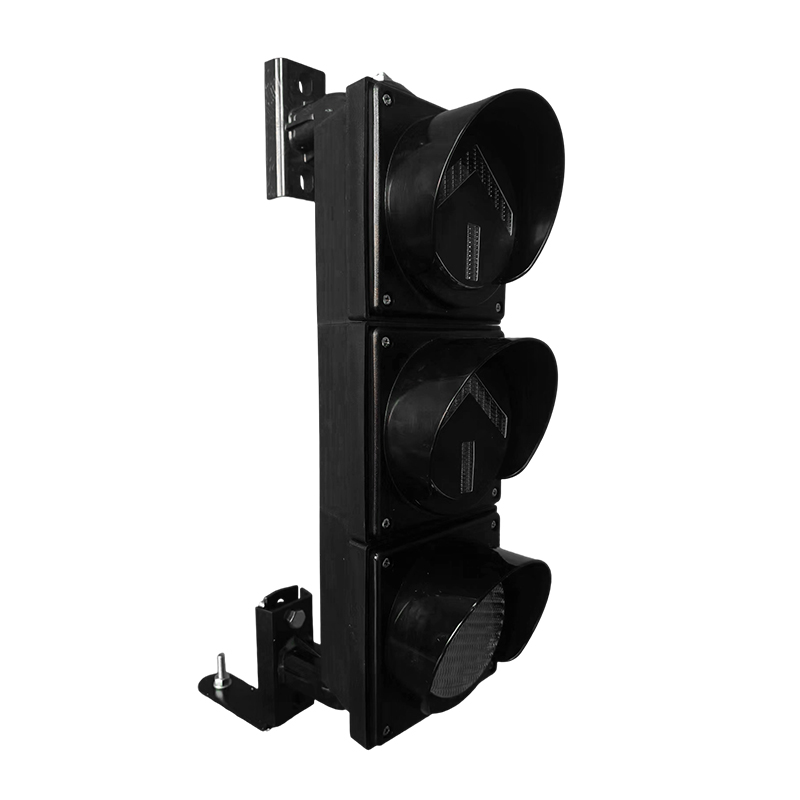

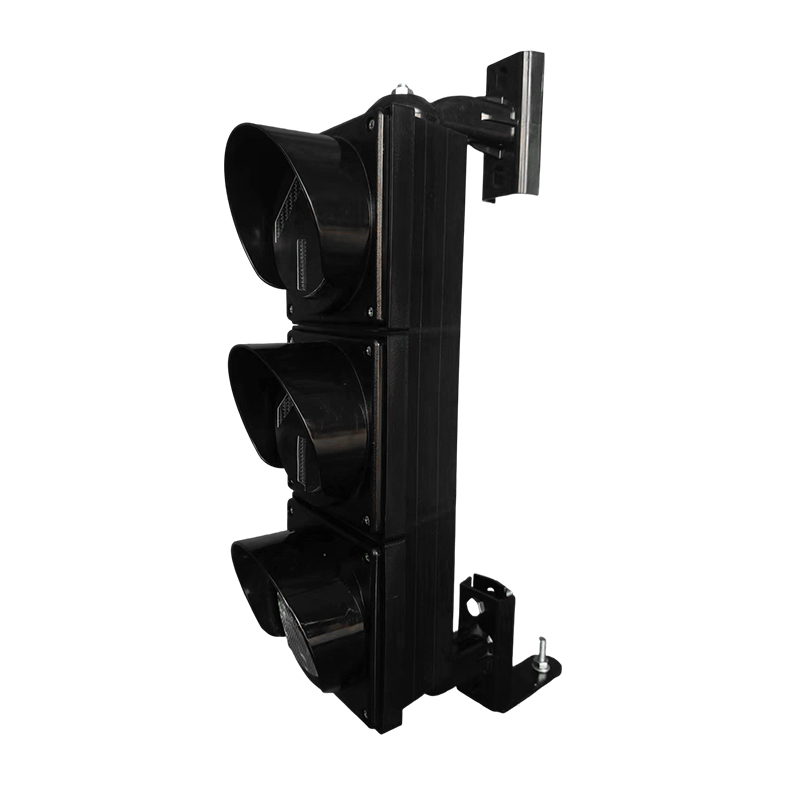

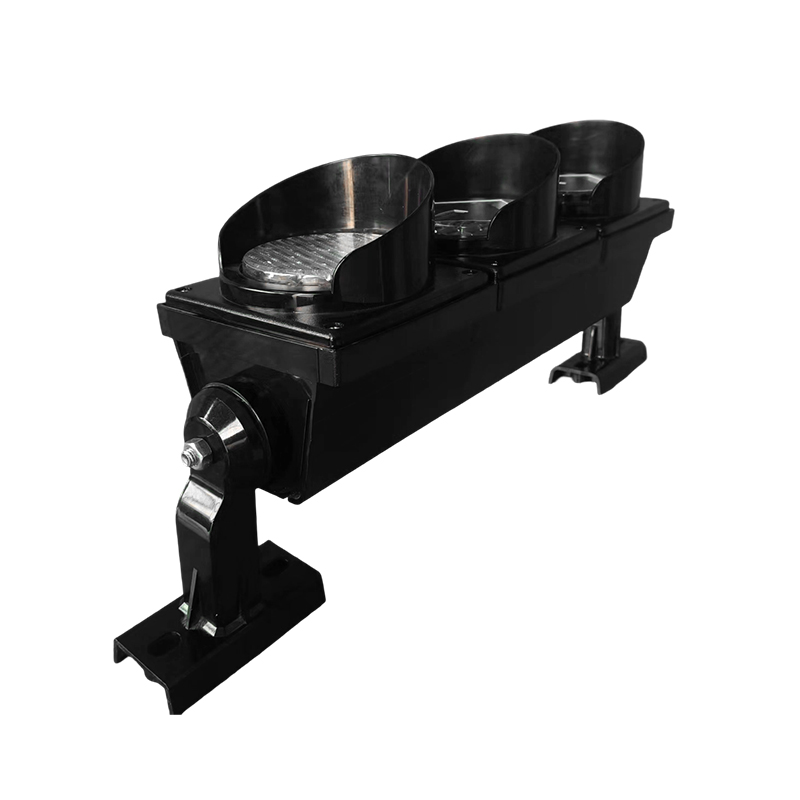

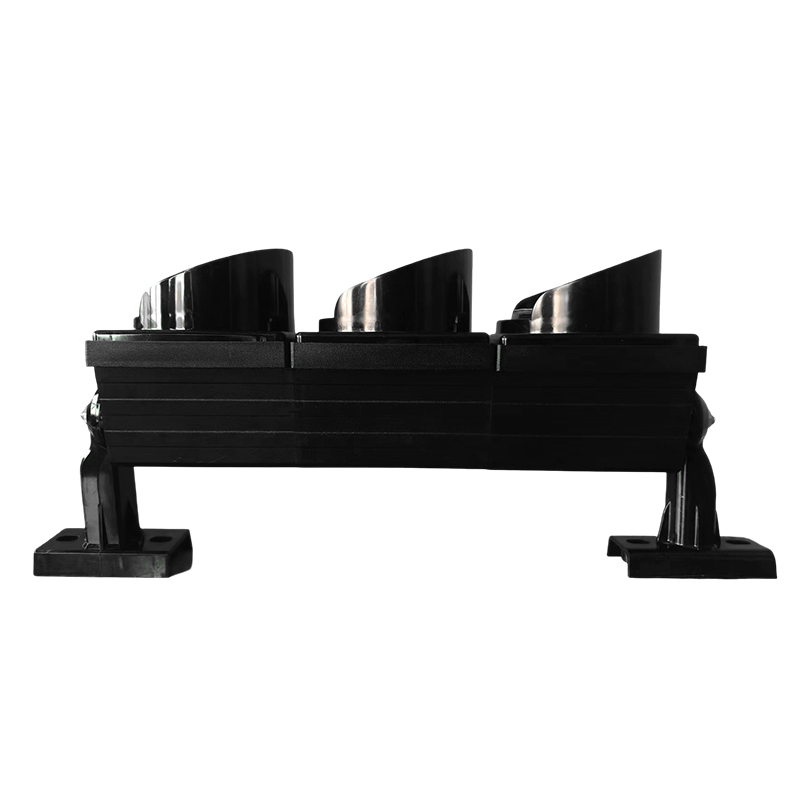

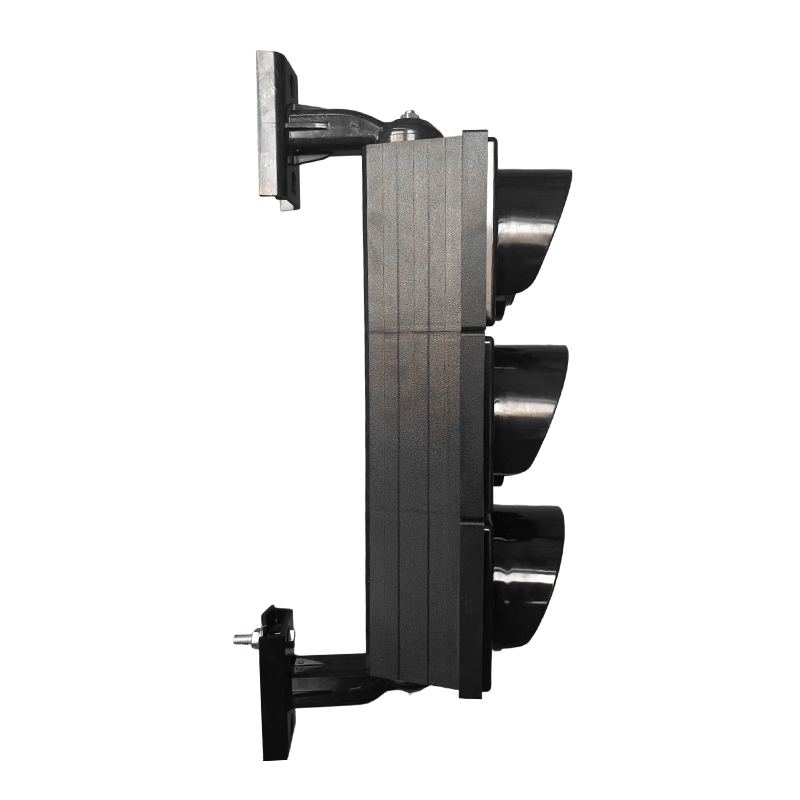

CJ-103JT-S LED Triple-Arrow Traffic Signal

• The signal light consists of three light discs: red, yellow, and green, with a black housing.

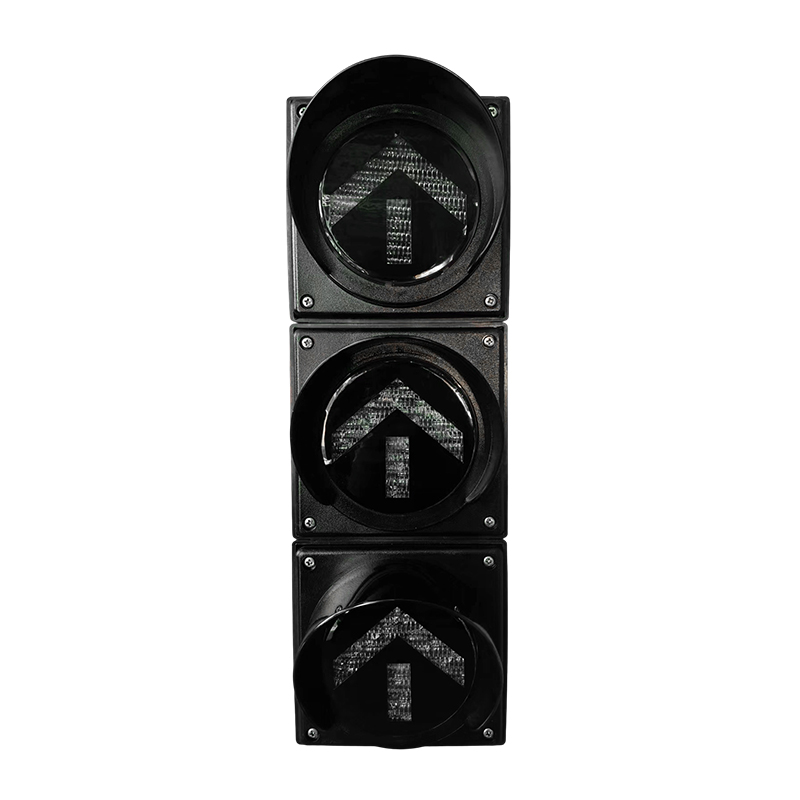

• Three-segment arrow display: Green / Yellow / Red arrows, allowing for independent direction phase control.
• 100mm LED arrow module: High-contrast arrow pattern, clearly visible within standard driving distance.
• Vertical three-segment lamp body: Total height of 450mm, compatible with standard signal light installation accessories and brackets.
• Plastic lamp body + PC lampshade: Corrosion-resistant, lightweight, suitable for long-term outdoor installation.
• Rated power ≤8W: Extremely low energy consumption for 24-hour operation in all weather conditions.
• 85~264VAC wide voltage input: Can be deployed internationally without modification.
• IP53 protection rating: Rainproof and dustproof, meets outdoor installation requirements.
• LED chips with stable performance and uniform brightness.
• Aesthetically pleasing design, energy-efficient, and environmentally friendly.
• Mask made of PC/Glass material, durable, with high light transmittance and UV protection.
• Imported chips used, offering high brightness, low light decay, long lifespan, and stable performance.

Installation and Compatibility

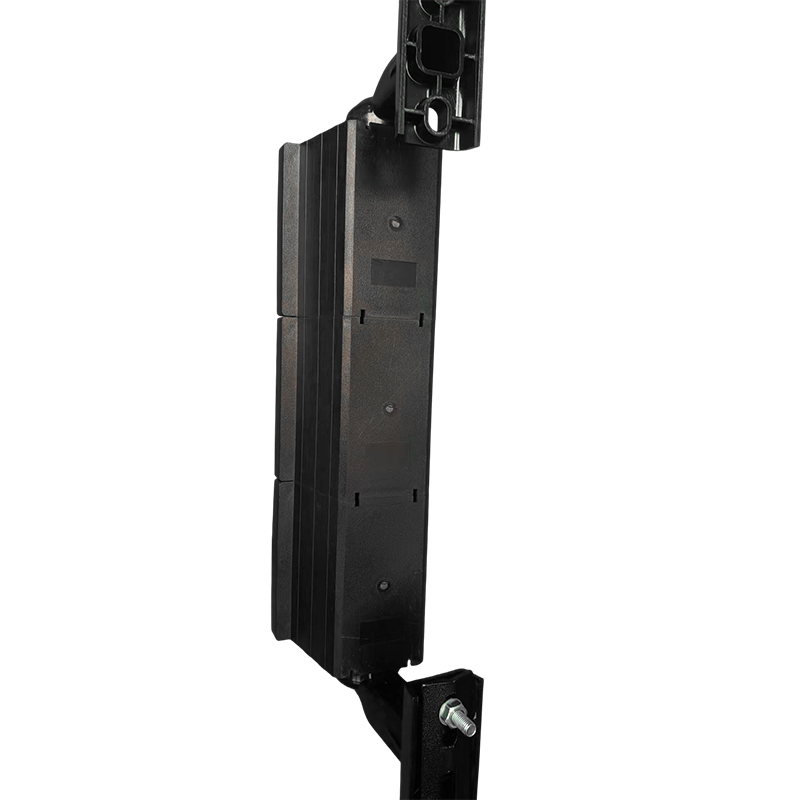

The CJ-103JT-S LED arrow traffic signal light supports vertical pole installation and is typically installed alongside round signal lights or placed above dedicated turning lanes to protect the left/right turn control phase. The signal light connects to the traffic controller’s dedicated arrow phase output loop and is compatible with both solid-state relays and traditional relay-type controllers. The operating voltage range is 85~264VAC. The lamp body is equipped with standard arm and side pole bracket mounting holes.

Applicable Scenarios
•Signalized intersections for protecting left or right turn control phases.
•Phase management for dedicated turning lanes in urban and suburban areas.
•Intersections in dual-ring control schemes that require independent arrow phase indication.
•Refined direction control management for high-traffic intersections.
•LED energy-saving retrofit replacement projects for incandescent arrow signal heads.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
