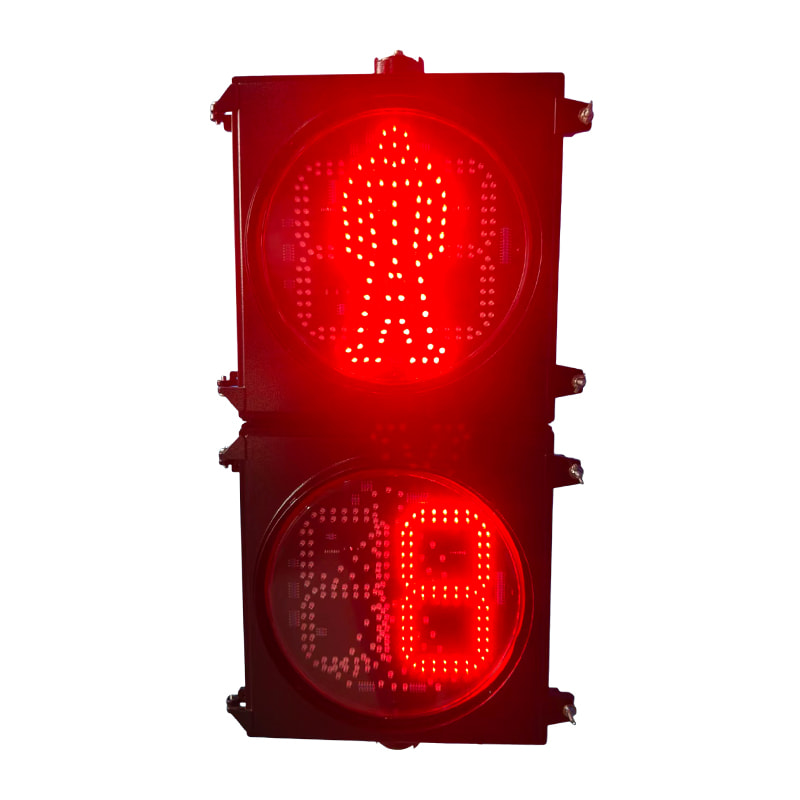

CJ-302HDLD-ZL 300mm LED Pedestrian Traffic Light with Embedded Countdown (Red & Green, Aluminum Housing, Glass Lens, IP53)

• Wide-Angle Large-Format Display
Featuring a 300mm luminous diameter, this signal integrates red and green lights with a countdown timer, enabling pedestrians to clearly determine remaining transit time even in heavy rain, thick fog, or complex lighting environments, significantly enhancing roadway crossing safety.

• Weather-Resistant & Durable Housing
The chassis is constructed from high-strength aluminum, offering excellent corrosion resistance and structural integrity. The glass lens is engineered for high impact resistance and anti-aging performance, making it ideally suited for long-term outdoor deployment.

• Broad Voltage Adaptability
Supporting a wide input range of 85~264VAC, the system is compatible with power grid fluctuations across various regions. This guarantees the traffic signal operates stably and consistently under diverse environmental and electrical conditions.

• Energy-Efficient & Low-Heat Operation
With a total rated power consumption of ≤8W, the unit utilizes high-brightness LED light sources characterized by low heat generation. This design extends the hardware's operational lifespan while reducing energy consumption and improving long-term efficiency.

• Reliable Protective Performance
Achieving an IP53 protection rating, the enclosure is effectively sealed against dust accumulation and rainwater splashes. This ensures the signal remains reliable during prolonged exposure to challenging outdoor environments.

Lightweight & Compact Design

Dimensions: 805×405×120mm

Net Weight: Approximately 7.5KG

Packaging Size: 865×495×220mm
The compact and rationalized structural layout facilitates rapid installation and efficient logistics, making it an ideal solution for urban sidewalks and public zones.

Installation & Compatibility

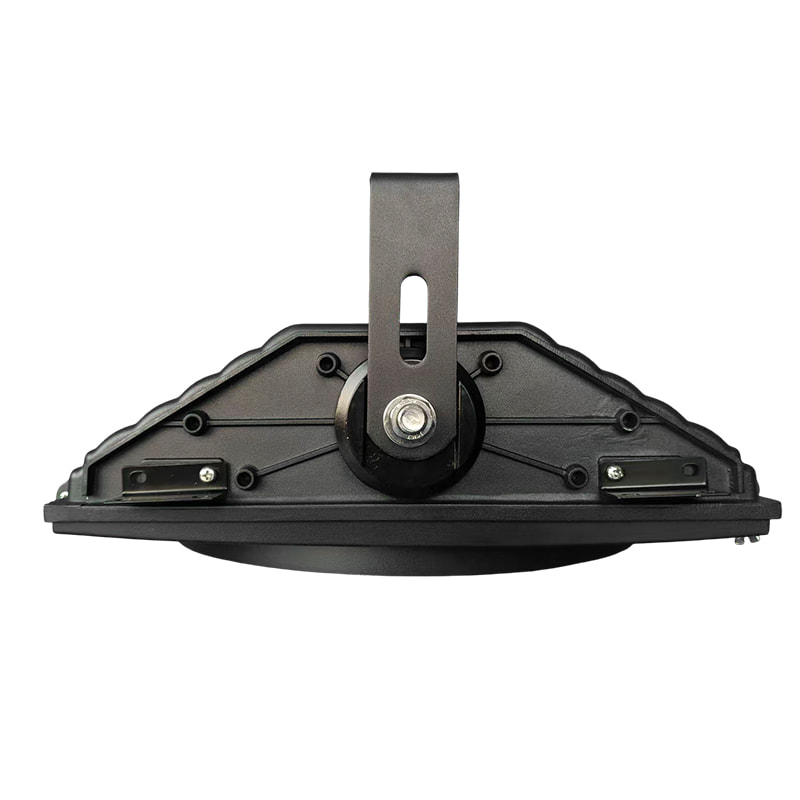

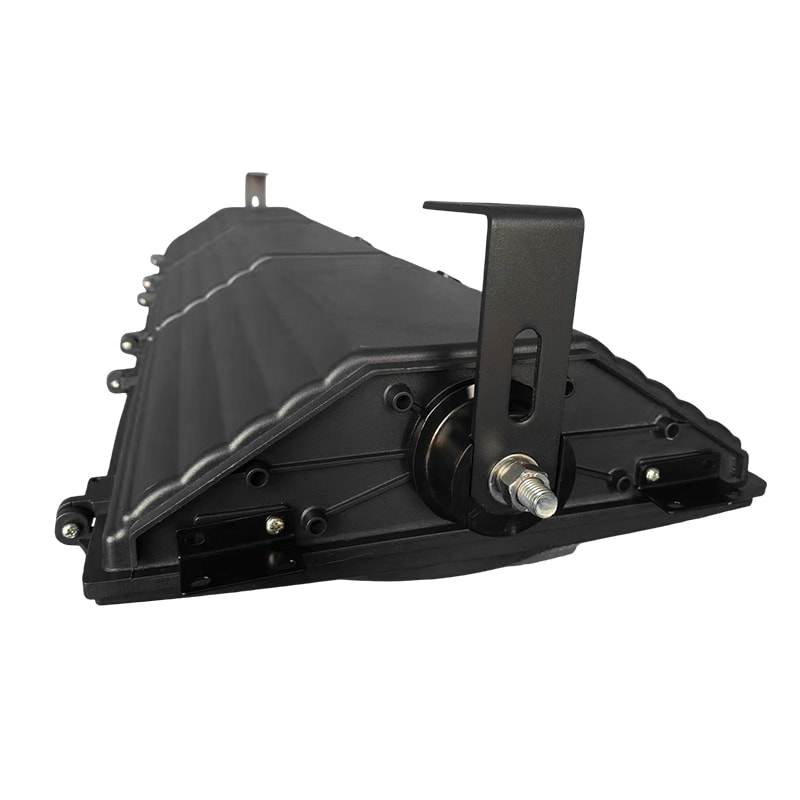

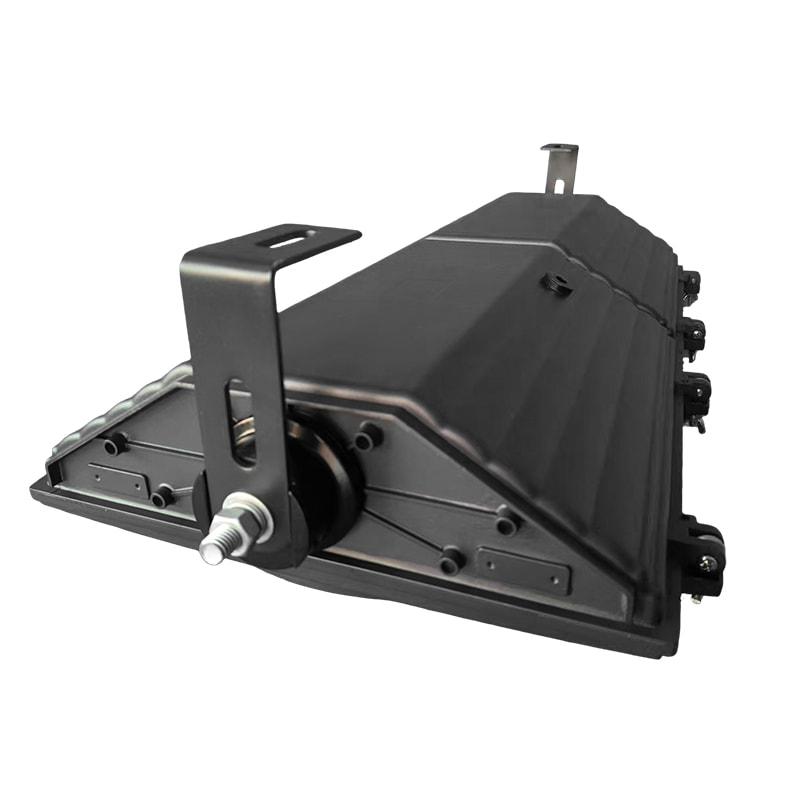

Stable Installation Structure: The lamp body is approximately 805mm long and weighs about 7.5kg. It is recommended to use reinforced bolts or double-point fixing brackets for installation on poles to ensure stable mounting under various weather and wind conditions.

Control System Access: The electrical interface is compatible with standard traffic controllers, supporting independent control of red light, green light, and embedded countdown signals, allowing for seamless integration with existing traffic signal systems.

Convenient Maintenance Design: Features a modular assembly design where the luminous discs, embedded countdown module, and drive power supply can be maintained separately. Components can be replaced without removing the entire lamp, making maintenance more efficient.

Weatherproof Protection Design: The lamp body is made of aluminum alloy and the lens is made of glass, with an IP53 protection rating. It is dustproof and waterproof, suitable for long-term outdoor use.

Applications
Urban Pedestrian Streets & Arterial Roads: Provides pedestrian traffic instructions and embedded countdown displays to guide pedestrians safely and orderly.

School & Community Intersections: Reminds pedestrians of the remaining crossing time through the countdown function, improving intersection safety.

Industrial Parks & Factory Walkways: Provides clear signals in pedestrian areas within parks to ensure the safety of pedestrians and small vehicles.

Public Transport Hubs & High-Traffic Areas: Provides intuitive countdown alerts at high-traffic intersections to improve transit efficiency and reduce congestion and conflicts.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
