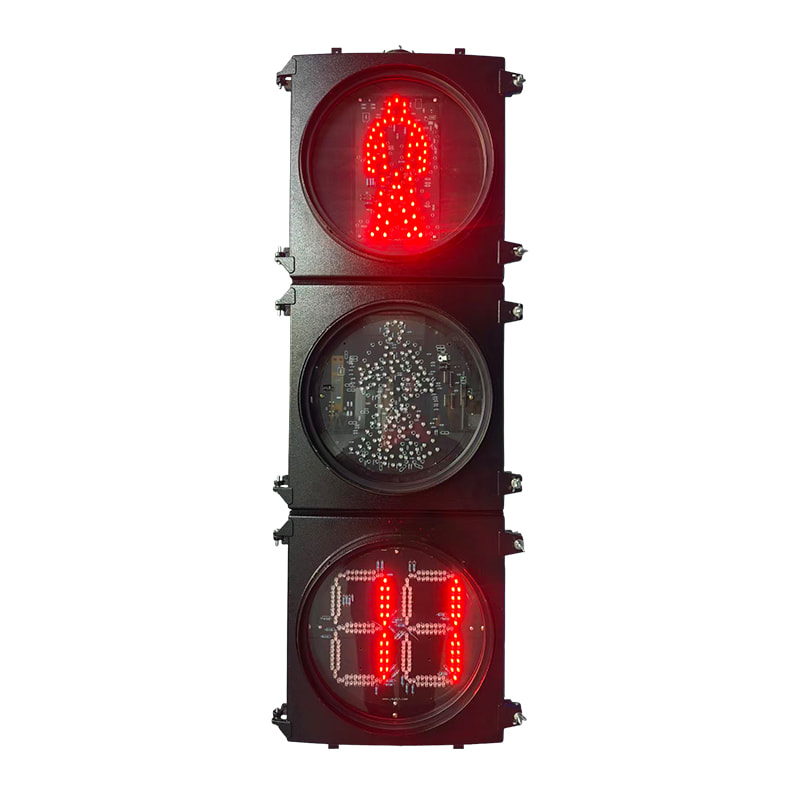

CJ-303HLRD-ZL 300mm LED Pedestrian Traffic Light with Countdown (Red & Green, Aluminum Housing, Glass Lens, IP53)

• Large-Format High-Visibility Display
Featuring a 300mm luminous diameter, this signal integrates red and green lights with a countdown timer, allowing pedestrians to quickly determine the remaining transit time. This design ensures safe roadway crossings even in heavy rain, thick fog, or complex lighting environments.

• Rugged & Weather-Resistant Housing
The chassis is constructed from high-strength aluminum, providing a perfect balance of corrosion resistance and structural stability. The glass lens is engineered for superior impact resistance and anti-aging performance, guaranteeing long-term reliability for continuous outdoor use.

• Wide Voltage Adaptability
Supporting a broad input range of 85~264VAC, the system seamlessly adapts to power grid fluctuations across different regions. This ensures the traffic signal operates consistently and stably under various electrical infrastructure conditions.

• Low-Power Energy-Saving Design
With a total rated power consumption of ≤8W, the unit is equipped with high-efficiency LED light sources characterized by low heat generation. This design effectively extends the hardware's operational lifespan while minimizing energy consumption and operational costs.

• Reliable Protective Performance
Achieving an IP53 protection rating, the enclosure is effectively sealed against dust accumulation and rainwater splashes. This ensures stable, long-term performance throughout prolonged exposure to outdoor elements.

Lightweight & Compact Installation

Dimensions: 1178×405×120mm

Net Weight: Approximately 8.5KG

Packaging Size: 1225×495×220mm
The rationalized, compact structural layout facilitates efficient logistics, rapid on-site installation, and simplified routine maintenance, making it ideal for urban roadway deployment.

Installation & Compatibility

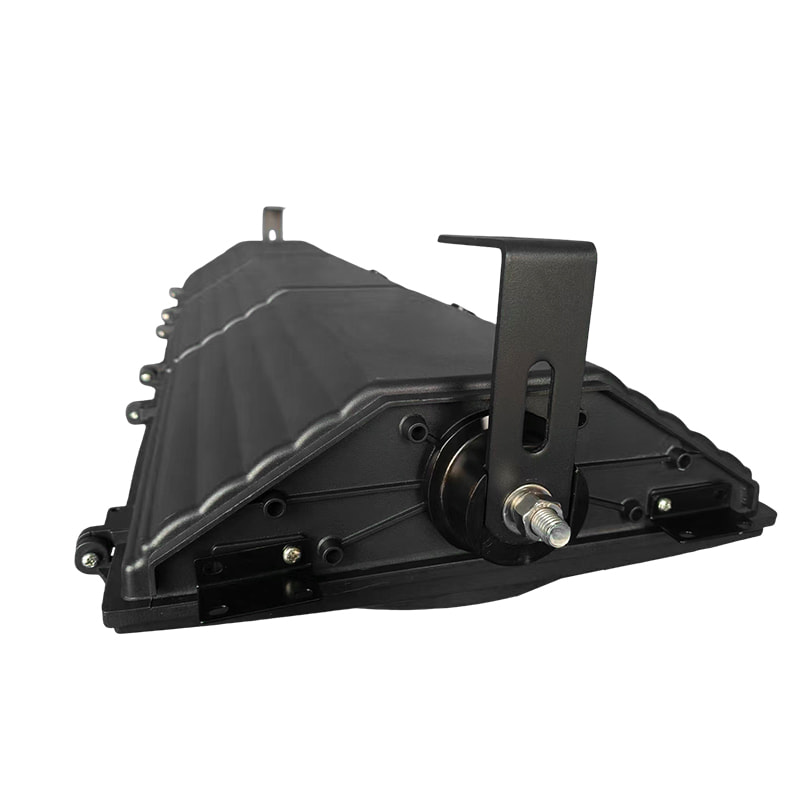

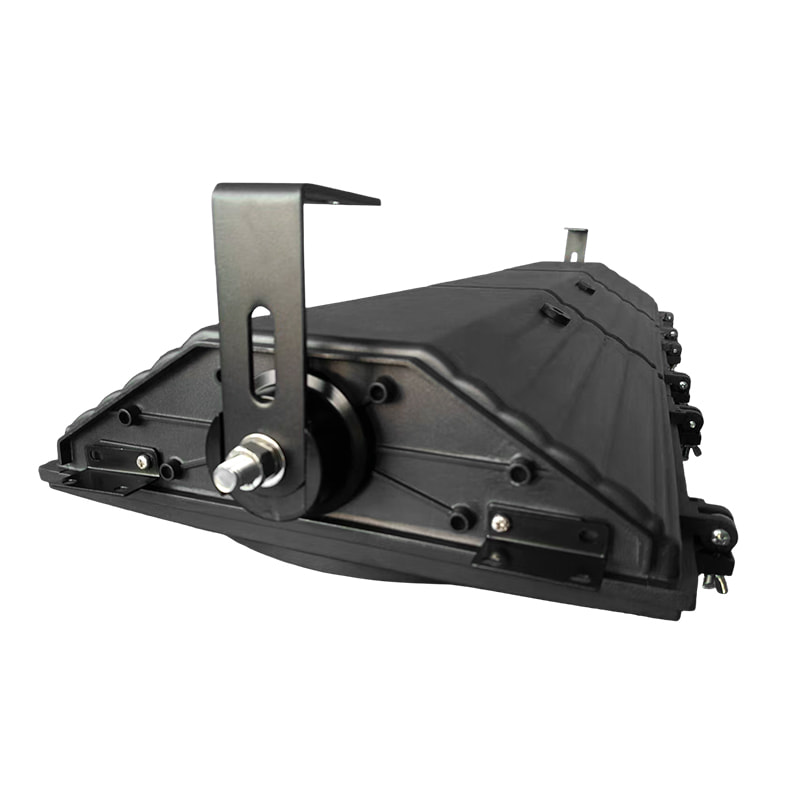

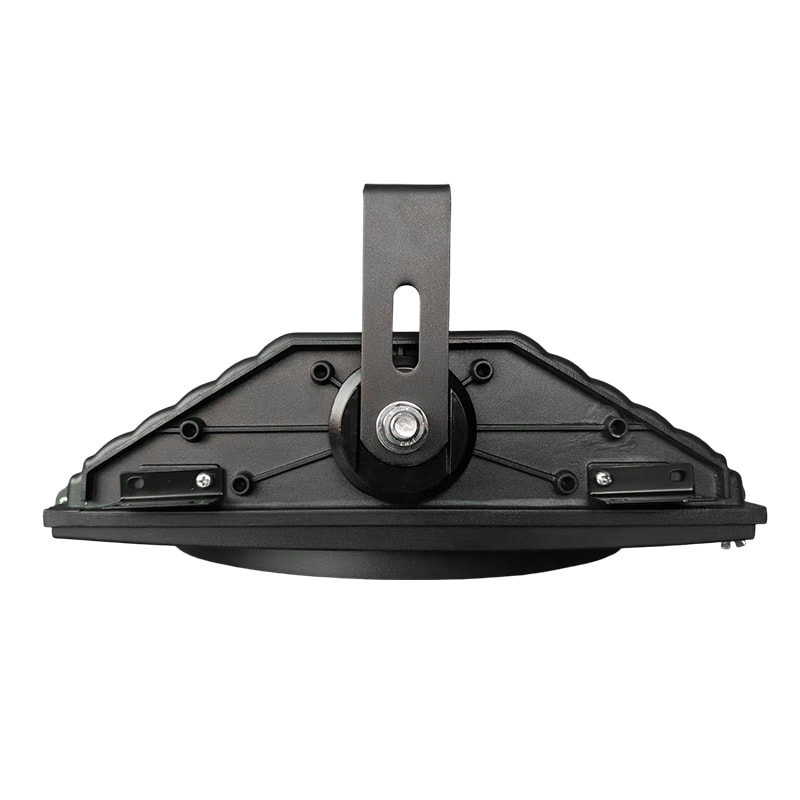

Stable Installation Structure: The lamp body is approximately 1178mm long and weighs about 8kg. It is recommended to use reinforced bolts or double-point fixing brackets for installation on poles to ensure stable mounting under various weather and wind conditions.

Control System Access: The electrical interface is compatible with standard traffic controllers, supporting independent control of red light, green light, and countdown signals for seamless integration with existing traffic signal systems.

Convenient Maintenance Design: Features a modular assembly design where the luminous discs, countdown module, and drive power supply can be maintained separately. Components can be replaced without removing the entire lamp, making maintenance more efficient.

Weatherproof Protection Design: The lamp body is made of aluminum alloy and the lens is made of glass, with an IP53 protection rating. It is dustproof and waterproof, suitable for long-term outdoor use.

Applications
Urban Pedestrian Streets & Arterial Roads: Provides pedestrian traffic instructions and countdown displays to guide pedestrians safely and orderly.

School & Community Intersections: Reminds pedestrians of the remaining crossing time through the countdown function, improving intersection safety.

Industrial Parks & Factory Walkways: Provides clear signals in pedestrian areas within parks to ensure the safety of pedestrians and small vehicles.

Public Transport Hubs & High-Traffic Areas: Provides intuitive countdown alerts at high-traffic intersections to improve transit efficiency and reduce congestion and conflicts.

This series of products supports B2B bulk purchasing. The minimum order quantity and delivery cycle vary depending on the specific configuration. We offer OEM branding services and can provide customized lamp body colors or housing options based on project requirements.
Sunshades, backplates, mounting brackets, and pole accessories are available as separate options.
For technical inquiries, quote requests, or project specification support, please contact our sales team and provide information such as the project location, required quantity, installation method, and applicable local technical standards. Samples can be provided for evaluation and testing prior to bulk purchasing.
